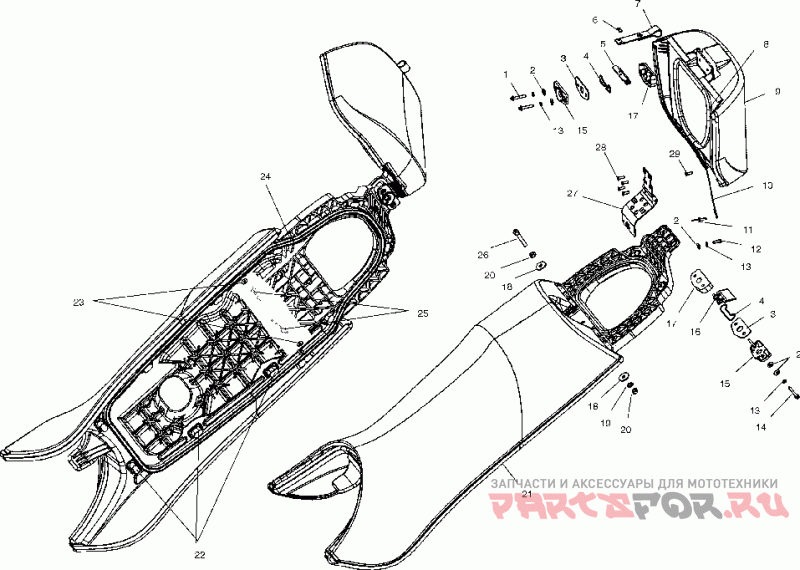

Seat - w025199d/w025199i

Polaris W025199I INT'L VIRAGE TX

Polaris
#oem кодцена
1
7516806
Болт
2
7555839
Washer, Flat, S.s.(10)
3
5211314
Plate, Seatbase Latch
4
7042036
Spring, Seatbase Latch
5
5433779
Handle, Seat Latch, W/holes
6
7621478
Rivet (50)
8
5411807
Seal, Seat, Rear, Ms
10
7080914
Cable, Limiter, Hinge, 8.0
12
7516805
Screw, S.s.(10)
13
7555838
Washer, Lock, S.s.
14
7517806
Screw, M6x1.0x45 (10)
15
5431357
Plate, Latch, Bot.seat Base
16
5431358
Handle, Seat Base Latch
17
5431359
Plate, Top, Seatbase Latch
18
7555846
Шайба
19
7552607
Washer, Lock, S.s.
20
7542454
Nut, Hex, S.s.,
21
2682773-374
Asm-seat, Main, Mang Met
21
2682665-374
Cover-seat, Main, Euro, Mang Met
22
5521490
Амортизатор ударов
23
5245090
Washer-seat Strap, 2 Hole
24
5521536
Seal, Seat, Main
25
7661108
Rivet-pop, 1/8(.126-.375)al-al(5
26
5020753
Plunger, Latch
27
1013431
Asm-hinge, Seat, Virage
28
7517669
Винт
29
7517717
Scr-m6x1.0x12 Ph/pan Hd-ss (10)
2682966-320
Asm-seat, Final, Vir Tx 374/320 ([incl. 1-29] )
