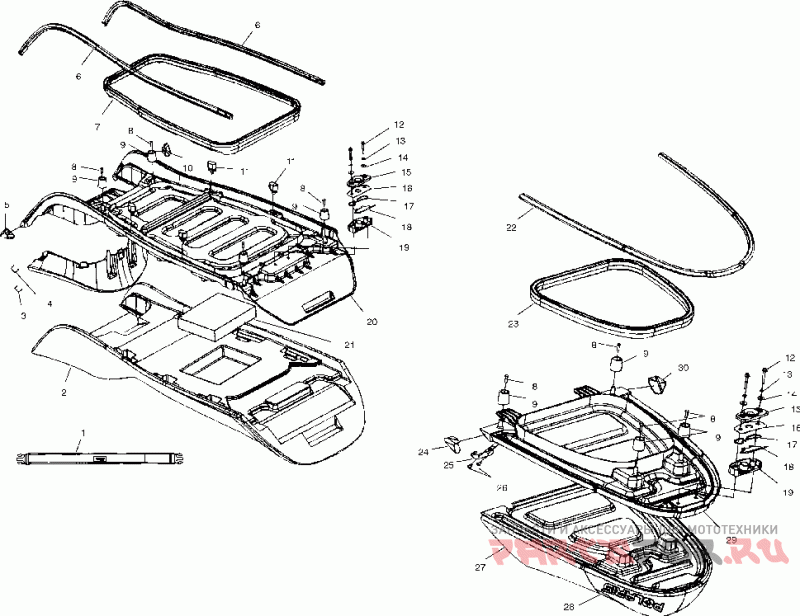

Seat - w015099d

Polaris W015099I INT'L GENESIS

Polaris
#oem кодцена
2
2682686-320
Cover-seat, Frnt, Brt Silver
5
5433113-320
Shield-seat, Front, Rh, P320
6
5521520
Trim, Seat, Front
7
5521483
Seal-seat, Front
8
7517732
Screw1/4-14x1/2ph
9
5521533
Bumper-seat
10
5433112-320
Shield-seat, Front, Lh, P320
11
5521490
Амортизатор ударов
12
7516806
Болт
13
7555838
Washer, Lock, S.s.
14
7555839
Washer, Flat, S.s.(10)
15
5431357
Plate, Latch, Bot.seat Base
16
5211314
Plate, Seatbase Latch
17
7042036
Spring, Seatbase Latch
18
5431358
Handle, Seat Base Latch
19
5431359
Plate, Top, Seatbase Latch
20
2682761-320
Asm-seat, Gen Frnt, Brt Silver (incl. 2-19)
22
5521522
Trim, Seat, Rear
23
5521484
Seal-seat, Rear
24
5433115-307
Shield-seat, Rear, Rh, Cat Blue
25
5433376-307
Cap-seat, End, Cat Blue
26
5432966
Clip, Xmas Tree (10) X
27
2682427-307
Cover-seat, Rear, Cat Blue
2200891
Kit,decal Application Solution, (for Seat Decals)
30
5433114-307
Shield-seat, Rear, Lh, Cat Blue
