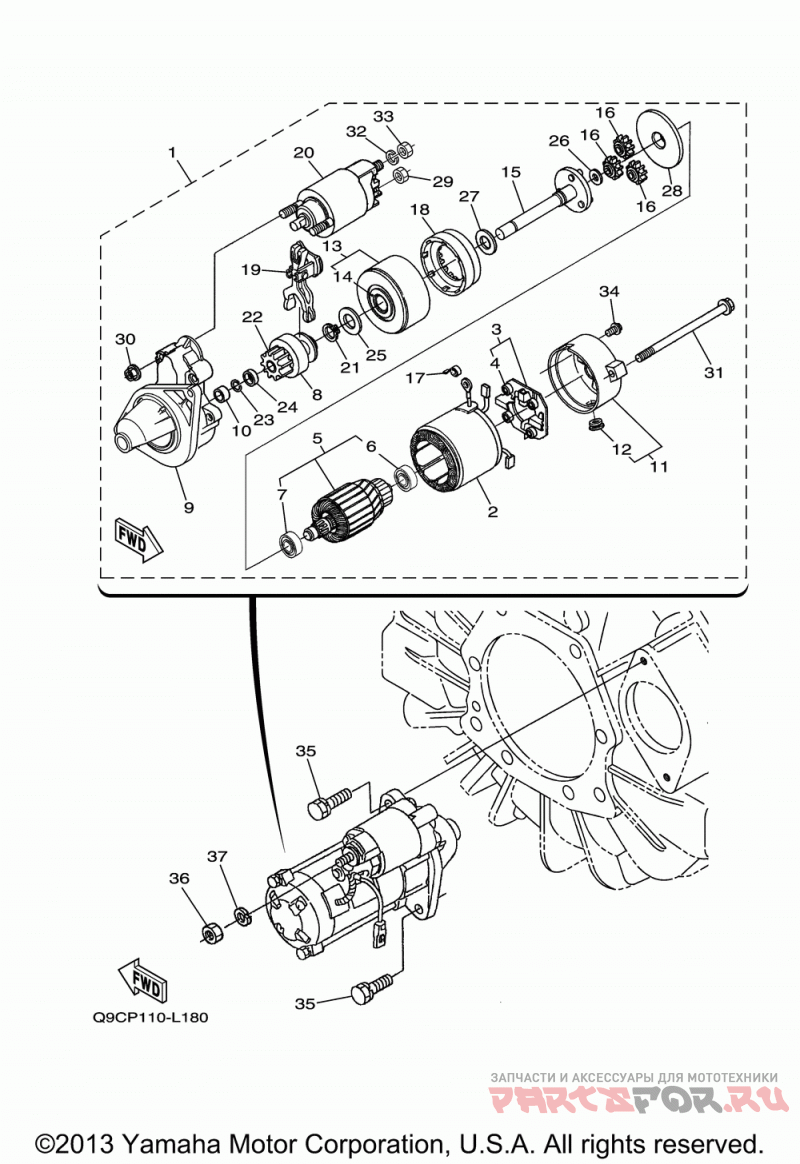

Стартер

Yamaha EDL11000SD

Yamaha
#oem кодцена
1
YF6-79803-11-50
Стартер
2
YF6-A1003-11-60
Yoke Assy, Starter
3
YF1-49586-33-80
Holder Assy
5
YF6-A1003-11-70
Ротор
6
YF1-55046-35-30
Подшипник
7
YF1-55046-35-00
Подшипник
8
YFK-35118-14-30
Clutch Sub Assy, Star
9
YF6-79803-11-80
Housing Assy, Starter
10
YF6-A1003-11-90
Bearing(oil Less) (oil Less)
11
YFK-35118-14-50
Flame Assy, Commutato
12
YF1-21826-32-90
Cover, Water Drain
13
YF1-49586-35-30
Bearing Sub Assy
15
YFK-35118-14-60
Shaft Sub Assy, Start
16
YF1-49586-32-60
Шестерня
17
YF1-54016-33-91
Пружина
18
YF1-49586-32-70
Шестерня 2
19
YF1-49586-30-50
Lever, Starter Drive
20
YF1-21816-30-80
Switch Assy, Magnetic
21
YF1-49586-31-70
Snap Ring, Shaft
23
YF1-21816-32-20
Кольцо
24
YF1-38166-34-60
Collar, Pinion Stop
25
YF1-49589-40-10
Washer, Plate 1
26
YF1-49589-40-20
Washer, Plate 2
27
YF1-49589-40-30
Washer, Plate 3
28
YF1-49589-40-40
Пластина
29
YF1-66119-20-20
Шестигранная гайка
30
YF1-42789-20-10
Гайка
31
YF1-14606-33-20
Bolt, Through
32
YF1-38019-41-00
Washer, Spring(t=8) (t=8)
33
YF1-96169-20-10
Шестигранная гайка
34
YFK-35118-14-80
Винт
35
YF0-11235-08-25
Болт
36
99780-08600-00
Гайка
37
92907-08100-00
Шайба
