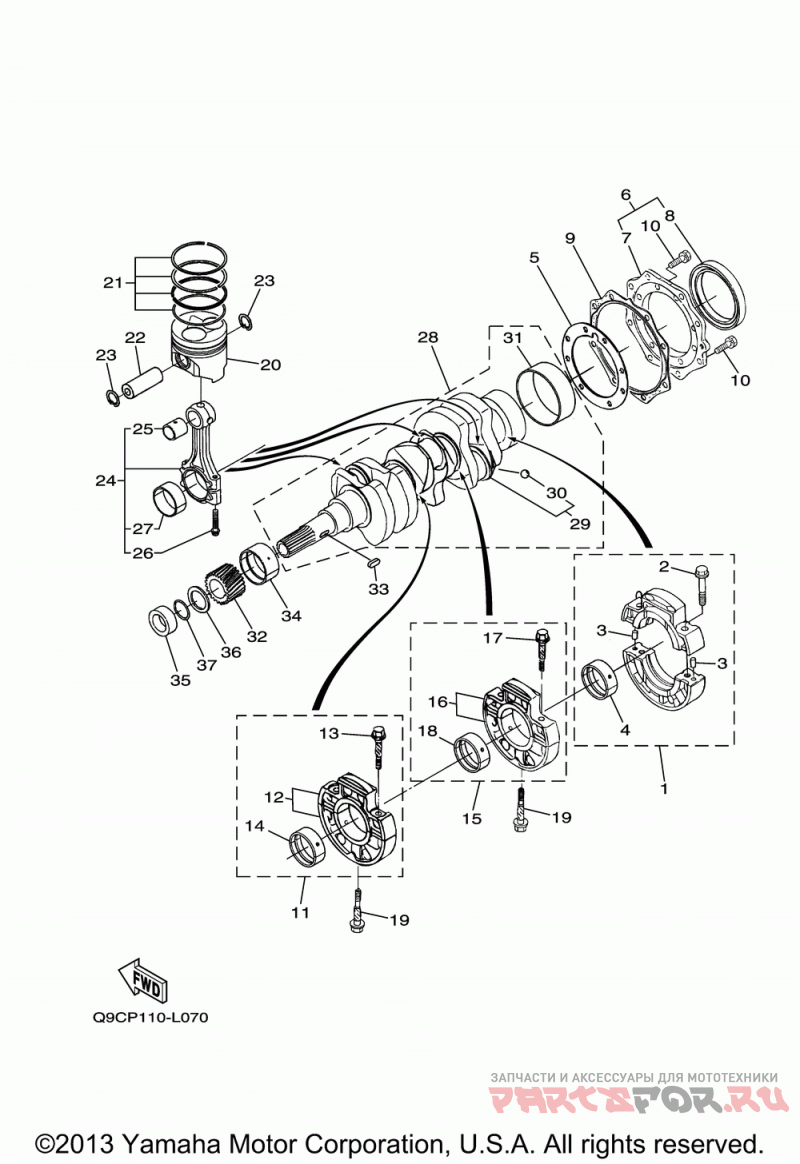

Коленчатый вал и Поршень

Yamaha EDL11000SD

Yamaha
#oem кодцена
2
YF0-17545-08-40
Болт
3
YF0-50120-06-08
Штифт
4
YF1-56942-39-32
Metal, Crankshaft (1 Ap
5
YF1-58520-43-60
Gasket, Bearing Case
6
YF1-58410-48-03
Bearing Cover Assy
7
YF1-58410-48-15
Cover, Bearing Case
8
YF1-92159-91-60
Сальник
9
YF1-58410-48-23
Прокладка
10
YF0-10235-06-22
Болт
12
YF1-68510-40-40
Main Bearing Case As
13
YF1-58410-45-40
Bolt, Bearing Case
14
YF1-58612-34-84
Metal, Crankshaft(st (std)
14
YF1-58612-38-63
Metal, Crankshaft(-0. Ap
14
YF1-58612-38-73
Metal, Crankshaft (2 Ap
16
YF1-68610-40-50
Main Bearing Case As
17
YF1-58410-45-40
Bolt, Bearing Case
18
YF1-58612-34-84
Metal, Crankshaft(st (std)
18
YF1-58612-38-63
Metal, Crankshaft(-0. Ap
18
YF1-58612-38-73
Metal, Crankshaft (2 Ap
19
YF1-58410-45-62
Bolt, Bearing Case 2
20
YF1-68512-11-14
Piston (std)
20
YF1-68512-19-03
Pistion 0.25 (0.25mm O/s) Ap
21
YF1-68532-10-50
Piston Ring Assy (std)
21
YF1-68532-10-90
Piston Ring Assy(0.2 (0.25mm O/s) Ap
22
YF1-68712-13-10
Палец поршневой
23
YF1-52612-13-30
Circlip, Piston Pin
24
YF1-G6872-20-10
Шатун в комплекте
25
YF1-68512-19-82
Bush Piston Pin
26
YF1-68512-21-40
Bolt, Con.rod.
27
YF1-58612-23-14
Metal Crank Pin (std)
27
YF1-58612-29-73
Metal, Crank Pin(-0.2 Ap
29
YF1-68612-30-12
Crankshaft Comp
30
YF0-77150-32-07
Шарик
31
YF1-92152-32-80
Sleeve, Crankshaft
32
YF1-58412-41-10
Gear, Crnkshft
33
YF0-57120-05-15
Шпонка
35
YF1-58412-32-50
Collar, Crnkshft
36
YF1-58812-33-10
Slinger, Oil
37
YF0-48141-62-20
Уплотнительное кольцо
