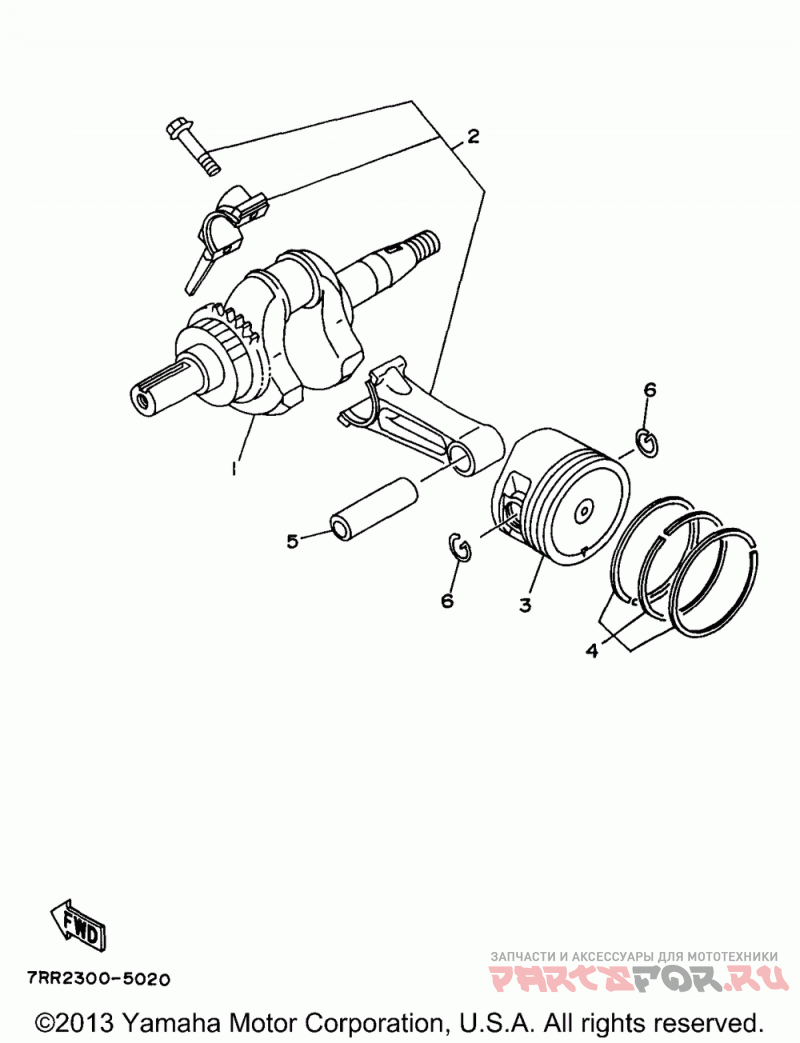

Коленчатый вал и Поршень
Yamaha EF1600A/EF2400A
| # | oem код | название | цена |
|---|---|---|---|
1 | 7NN-11400-41-00 Коленчатый вал в сборе | Коленчатый вал в сборе | |
2 | 7CN-E1650-11-00 Шатун в комплекте | Шатун в комплекте | |
3 | 7CL-E1631-00-00 Piston (std)
(std) Ef1600a | Piston (std)
(std) Ef1600a | |
3 | 7NJ-11631-00-98 Piston Std
(std) Ef2400a | Piston Std
(std) Ef2400a | |
3 | 7NH-11635-00-00 Piston 1 O/s 0.25
(0.25mm O/s) Ap Ef1600a | Piston 1 O/s 0.25
(0.25mm O/s) Ap Ef1600a | |
3 | 7NJ-11635-00-00 Piston 1 O/s 0.25
(0.25mm O/s) Ap Ef2400a | Piston 1 O/s 0.25
(0.25mm O/s) Ap Ef2400a | |
3 | 7NH-11636-00-00 Piston 2 O/s 0.50
(0.50mm O/s) Ap Ef1600a | Piston 2 O/s 0.50
(0.50mm O/s) Ap Ef1600a | |
3 | 7NJ-11636-00-00 Piston 2 O/s 0.50
(0.50mm O/s) Ap Ef2400a | Piston 2 O/s 0.50
(0.50mm O/s) Ap Ef2400a | |
4 | 7CL-E1610-00-00 Piston Ring Set (std
(std) Ef1600a | Piston Ring Set (std
(std) Ef1600a | |
4 | 7WC-11610-00-00 Piston Ring Set (std
(std) Ef2400a | Piston Ring Set (std
(std) Ef2400a | |
4 | 7UA-11604-00-00 Piston Ring Set(0.25
(0.25mm O/s) Ap Ef1600a | Piston Ring Set(0.25
(0.25mm O/s) Ap Ef1600a | |
4 | 7CN-E1610-10-00 Piston Ring Set (0.2
(0.25mm O/s) Ap Ef2400a | Piston Ring Set (0.2
(0.25mm O/s) Ap Ef2400a | |
4 | 7NH-11605-00-00 Piston Ring Set(os
(0.50mm O/s) Ap Ef1600a | Piston Ring Set(os
(0.50mm O/s) Ap Ef1600a | |
4 | 7WC-11605-00-00 Piston Ring Set (0
(0.50mm O/s) Ap Ef2400a | Piston Ring Set (0
(0.50mm O/s) Ap Ef2400a | |
5 | 4H7-11633-00-00 Pin, Piston
Ur Ef2400a | Pin, Piston
Ur Ef2400a | |
5 | 280-11633-00-00 Pin, Piston
Ur Ef1600a | Pin, Piston
Ur Ef1600a | |
6 | 93450-17025-00 Circlip, Inner
(5 Per Pack) | Circlip, Inner
(5 Per Pack) |
