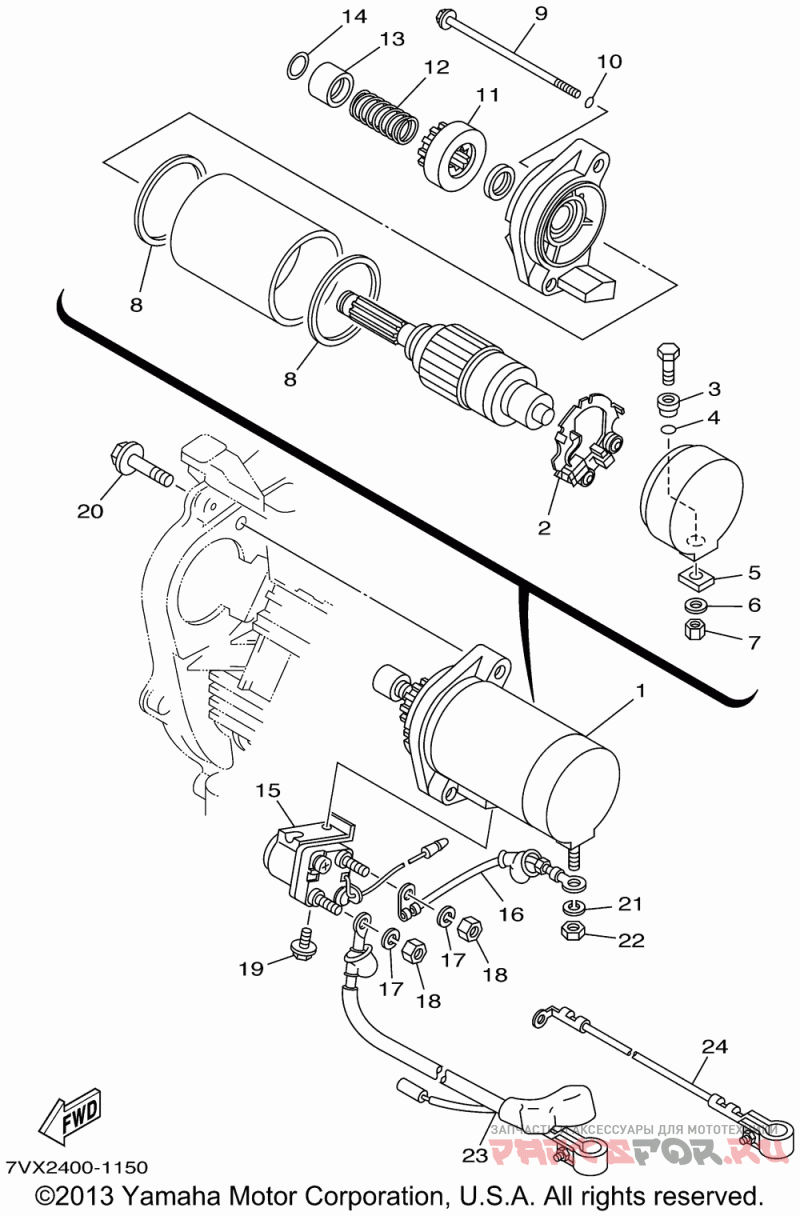

Стартер

Yamaha EF5200DE

Yamaha
#oem кодцена
1
7RH-81800-00-00
Starting Motor Assy (ef52)
2
7RH-W8184-00-00
Rear Bracket Set (ef52)
3
7RH-8182G-00-00
Bush, Terminal (ef52)
4
93210-06632-00
O-ring (ef52)
5
7RH-8181L-00-00
Washer, Plain (ef52)
6
90201-061A5-00
Washer, Plate (ef52)
7
95380-06700-00
Nut (ef52)
8
7RH-81861-00-00
Gasket (ef52)
9
7RH-81846-00-00
Screw (ef52)
10
93210-05098-00
O-ring (ef52)
11
7RH-81807-00-00
Gear Assy, Starter (ef52)
12
7KA-81858-00-00
Spring, Return (ef52)
13
7KA-81859-00-00
Stopper, Pinion (ef52)
14
7KA-81833-00-00
Ring, Stop (ef52)
15
7CN-H1940-01-00
Starter Relay Assy (ef52)
16
73A-81815-00-00
Wire, Starter (ef52)
17
92907-06100-00
Washer, Spring (ef52) (5 Per Pack)
18
95317-06700-00
Nut(jn5) (ef52)
19
95817-06016-00
Bolt, Flange (ef52)
20
95817-08035-00
Bolt, Flange (ef52)
21
92907-06100-00
Washer, Spring (ef52) (5 Per Pack)
22
95317-06700-00
Nut(jn5) (ef52)
23
7LV-82115-00-00
Wire, Plus Lead (ef52)
24
73H-82116-00-00
Wire, Minus Lead (ef52)
