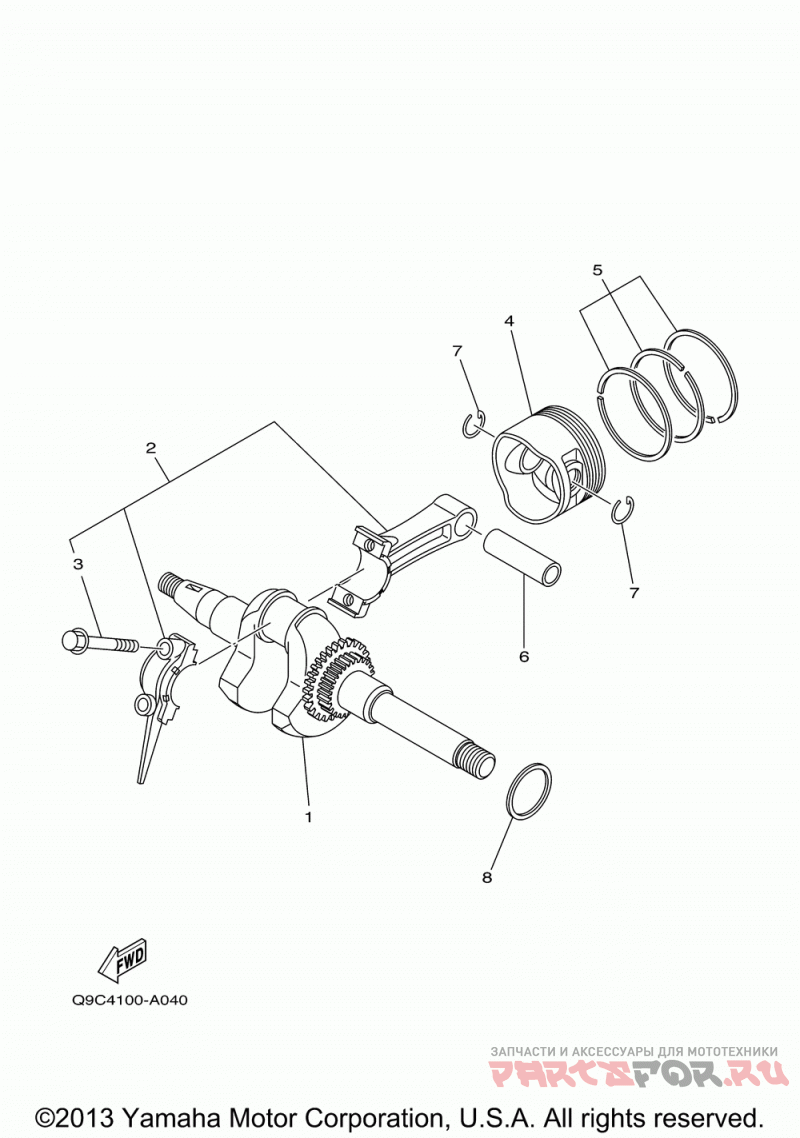

Crankshaft piston 1 yp20ta
Yamaha G9C4-0400126~_YP30TA Q9C5-500201~ YP40TA Q9C6-6001 YP20TA/YP40TA/YP30TA
| # | oem код | название | цена |
|---|---|---|---|
2 | 7CN-E1650-11-00 Шатун в комплекте | Шатун в комплекте | |
3 | 7CN-E1654-00-00 Болт шатуна | Болт шатуна | |
4 | 7NJ-11631-00-98 Piston Std
(std) | Piston Std
(std) | |
4 | 7NJ-11635-00-00 Piston 1 O/s 0.25
(0.25mm O/s) Ap | Piston 1 O/s 0.25
(0.25mm O/s) Ap | |
4 | 7NJ-11636-00-00 Piston 2 O/s 0.50
(0.50mm O/s) Ap | Piston 2 O/s 0.50
(0.50mm O/s) Ap | |
5 | 7WC-11610-00-00 Piston Ring Set (std
(std) | Piston Ring Set (std
(std) | |
5 | 7CN-E1610-10-00 Piston Ring Set (0.2
(0.25mm O/s) Ap | Piston Ring Set (0.2
(0.25mm O/s) Ap | |
5 | 7WC-11605-00-00 Piston Ring Set (0
(0.50mm O/s) Ap | Piston Ring Set (0
(0.50mm O/s) Ap | |
6 | 4H7-11633-00-00 Палец поршневой | Палец поршневой | |
7 | 93450-17025-00 Circlip, Inner
(5 Per Pack) | Circlip, Inner
(5 Per Pack) | |
8 | 7G4-11561-00-00 Shim, Crank 1
(t=0.1) Un | Shim, Crank 1
(t=0.1) Un | |
8 | 7G4-11561-10-00 Shim, Crank 1
(t=0.2) Un | Shim, Crank 1
(t=0.2) Un | |
8 | 7G4-11561-20-00 Shim, Crank 1
(t=0.3) Un | Shim, Crank 1
(t=0.3) Un |
