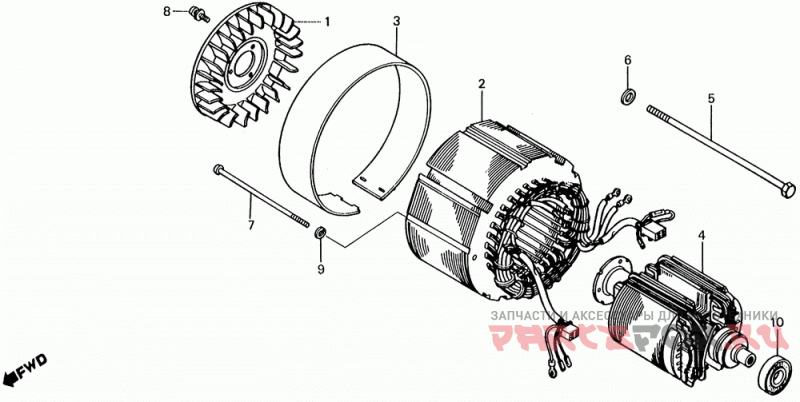

Rotor@stator
Honda EM2200
| # | oem код | название | цена |
|---|---|---|---|
001 | 31112-898-003 Вентилятор | Вентилятор | |
002 | 31120-898-632 Stator Assy. | Stator Assy. | |
003 | 31127-898-003H Cover, Stator *r8*
(bright Red) | Cover, Stator *r8*
(bright Red) | |
004 | 31130-898-003 Ротор | Ротор | |
005 | 90101-898-000 Bolt, Hex. (8x190) | Bolt, Hex. (8x190) | |
006 | 90430-657-000 Washer (23x8.3x3.2) | Washer (23x8.3x3.2) | |
007 | 93500-05130-1A Screw, Pan (5x130) | Screw, Pan (5x130) | |
008 | 93893-05014-08 Винт с шайбой (5x14) | Винт с шайбой (5x14) | |
009 | 94111-05800 Шайба (5mm) | Шайба (5mm) | |
010 | 96150-62030-10 Bearing (6203uu) | Bearing (6203uu) |
