  5. HRX217K1 TDA LAWN MOWER, USA, VIN# MAGA-1400001

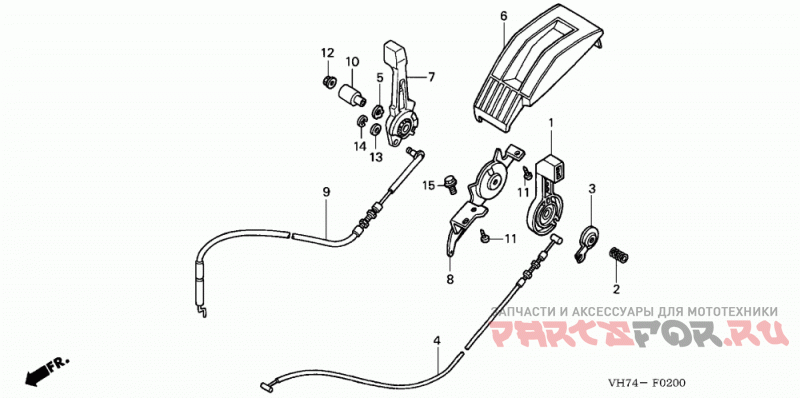

Throttle Lever (1)

Honda HRX217K1 TDA LAWN MOWER, USA, VIN# MAGA-1400001

Honda
#oem кодцена
1
17851-VA3-D00
SEE PART DETAILS - SUP; LEVER, THROTTLE
1
17851-VA3-D01
SEE PART DETAILS - PRI; LEVER, THROTTLE
2
17858-VA4-000
SPRING, THROTTLE LEVER
3
17859-VA3-800
Тарелка пружины
4
17910-VH7-000
Трос газа
5
47363-671-300
WASHER, WAVE (11MM)
6
54231-VA3-800
COVER, CONTROL
7
54311-VE1-R00
LEVER, CHANGE
8
54315-VE1-R00
STOPPER, LEVER
9
54630-VH7-000
CABLE, CHANGE
10
91551-VE1-R00
COLLAR, CHANGE LEVER
11
93901-35210
SCREW, TAPPING (5X12)
12
94050-06080
Гайка (6mm)
13
94101-06800
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)
14
94540-05010
E-RING (5MM)
15
95701-06010-00
Болт (6x10)
