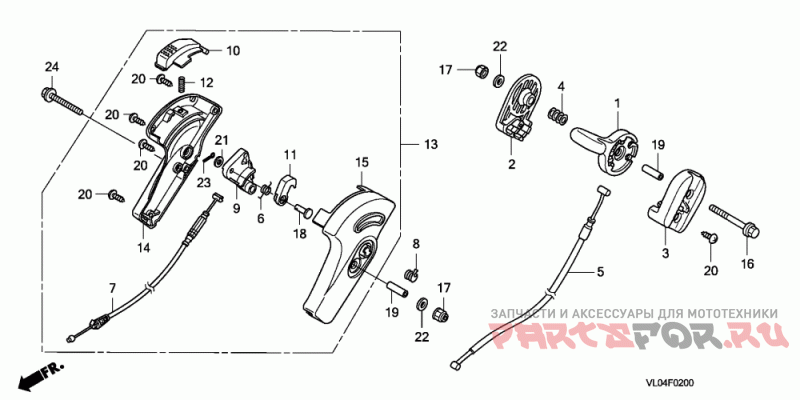

Throttle Lever

Honda HRR216K5 VXAA LAWN MOWER, USA, VIN# MZCG-7800001

Honda
#oem кодцена
1
17851-VL0-B00
Рычаг газа
2
17853-VL0-B00
CASE, R. THROTTLE LEVER
3
17856-VL0-B00
CASE, L. THROTTLE LEVER
4
17858-VA4-000
SPRING, THROTTLE LEVER
5
17910-VL0-B00
Трос газа
6
54414-VL0-C00
SPRING, LOCK LEVER RETURN
7
54530-VL0-C00
CABLE, ROTO-STOP
8
75118-VL0-C00
SPRING, ROTO-STOP RETURN
9
75128-VL0-C00
ARM, ROTO-STOP CABLE
10
75165-VL0-C00
KNOB, PUSH
11
75166-VL0-C00
LEVER, LOCK
12
75168-VL0-C00
SPRING, LEVER RETURN
13
75180-VL0-C00
CONTROL ASSY., ROTO-STOP
14
75183-VL0-C00
CASE, ROTO-STOP (R)
15
75186-VL0-C00
CASE, ROTO-STOP (L)
16
90104-VL0-B00
Болт (6x65)
17
90303-VG3-000
NUT, NYLON LOCK (6MM)
18
90751-VL0-C00
PIN, CLUTCH LEVER
19
91555-VL0-B00
COLLAR, THROTTLE
20
93911-14280
SCREW, TAPPING (4X12)
21
94101-06800
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)
22
94103-06000
Шайба (6мм)
23
94251-06000
PIN, LOCK (6MM)
24
95701-06065-00
Болт (6x65)
