  5. HRM195 PA LAWN MOWER, USA, VIN# MZBV-6000001

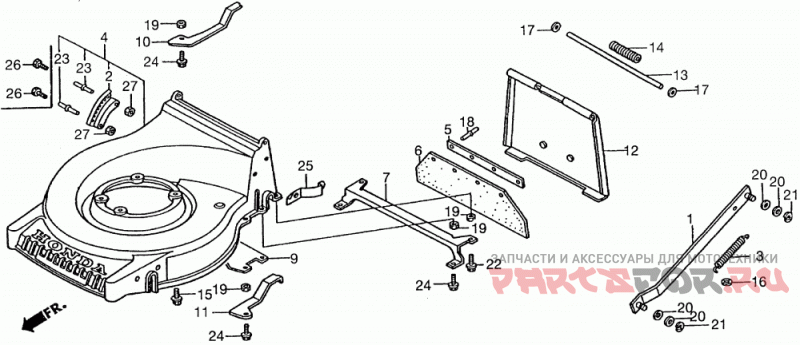

Cutter Housing

Honda HRM195 PA LAWN MOWER, USA, VIN# MZBV-6000001

Honda
#oem кодцена
1
42631-VB4-680
ARM, ADJUSTER
2
42987-VB4-300
PANEL, HEIGHT ADJUSTING
3
42992-VB4-000
SPRING, BALANCER
4
76111-VB4-680ZD
HOUSING, CUTTER *NH355*
5
76117-VB4-300
PLATE, SAFETY SHIELD
6
76118-VB4-300
SHIELD, SAFETY
7
76119-VB4-000
HOLDER, RR. SHAFT
9
76131-VB4-700
PLATE, SCROLL
10
76151-VB4-000
PLATE, R. GUIDE
11
76152-VB4-000
PLATE, L. GUIDE
12
76310-VB4-680
GUARD, DISCHARGE
13
76312-VB4-680
SHAFT, DISCHARGE GUARD
14
76314-VB4-000
SPRING, GUARD RETURN
15
90102-VA5-000
BOLT, ENGINE SETTING
16
90262-VB4-000
NUT, PUSH (9.5MM)
17
90407-952-300
WASHER, SPECIAL (6MM)
18
90851-VA9-000
RIVET, BLIND (4.8MM)
19
94001-06200-0S
SEE PART DETAILS - PRI; NUT, HEX. (6MM)
19
94001-06000-0S
SEE PART DETAILS - SUP; NUT, HEX. (6MM)
20
94102-10800
Шайба (10mm)
21
94540-07010
E-RING (7MM)
22
95701-06012-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)
24
95701-06014-00
Болт (6x14)
26
92301-05012-0A
BOLT, RECESSED (5X12)
27
94001-05000-0S
Гайка (5mm)
