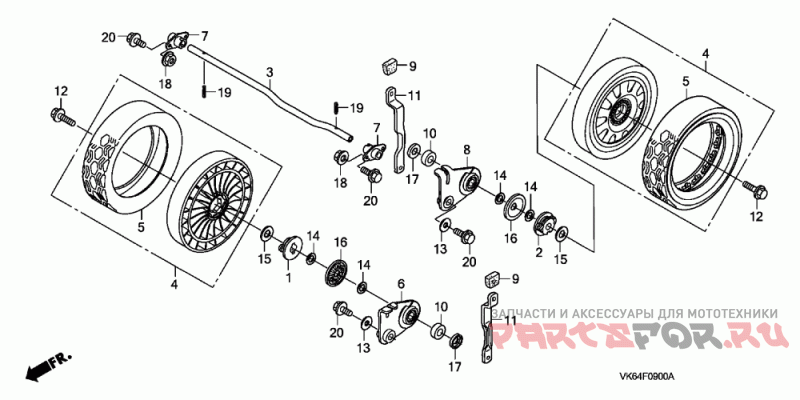

Rear Wheel (hxa, Hxc)

Honda HRC216K3 HXA LAWN MOWER, USA, VIN# MAKA-1050001

Rear Wheel (hxa, Hxc)

#

oem код

название

цена

1

SEE PART DETAILS - PRI; HOLDER, R. RATCHET

SEE PART DETAILS - PRI; HOLDER, R. RATCHET

2

SEE PART DETAILS - PRI; HOLDER, L. RATCHET

SEE PART DETAILS - PRI; HOLDER, L. RATCHET

3

SHAFT, RR. AXLE

SHAFT, RR. AXLE

4

42700-VK6-010ZA

WHEEL ASSY., RR. *NH462R*

WHEEL ASSY., RR. *NH462R*

5

SEE PART DETAILS - PRI; TIRE (9 INCH)

SEE PART DETAILS - PRI; TIRE (9 INCH)

6

ARM, R. RR. ADJUSTING

ARM, R. RR. ADJUSTING

7

HOLDER, RR. AXLE

HOLDER, RR. AXLE

8

ARM, L. RR. ADJUSTING

ARM, L. RR. ADJUSTING

9

GRIP, ADJUSTER

GRIP, ADJUSTER

10

COLLAR, DUST SEAL

COLLAR, DUST SEAL

11

PLATE, RR. ADJUSTER

PLATE, RR. ADJUSTER

12

Болт

Болт

13

WASHER, RR. ENGINE MOUNTING

WASHER, RR. ENGINE MOUNTING

14

WASHER, PLAIN (15MM)

WASHER, PLAIN (15MM)

15

Шайба (16 мм)

Шайба (16 мм)

16

SEAL, RR. WHEEL

SEAL, RR. WHEEL

17

COLLAR, FINAL SHAFT

COLLAR, FINAL SHAFT

18

Гайка (6mm)

Гайка (6mm)

19

PIN, SPRING (5X25)

PIN, SPRING (5X25)

20

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)
