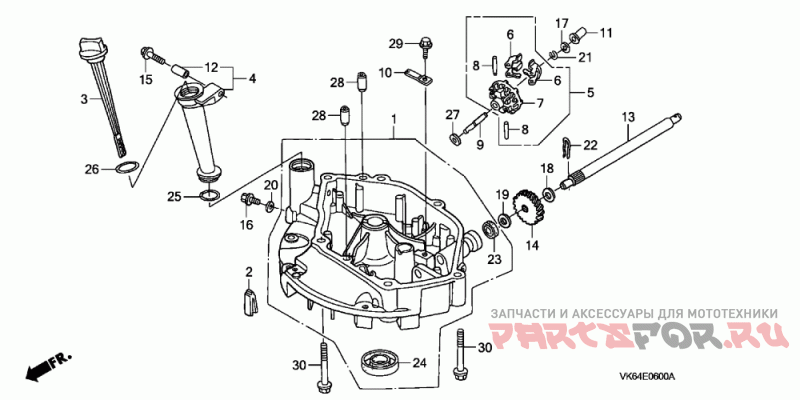

Oil Pan (hxa, Hxc)

Honda HRC216K3 HXA LAWN MOWER, USA, VIN# MAKA-1050001

Honda
#oem кодцена
1
11300-Z1V-407
PAN ASSY., OIL
2
15335-ZE7-000
RUBBER, OIL RETURN
3
15620-ZE6-810
Указатель уровня масла
4
15630-ZE6-810
EXTENSION, OIL FILLER
5
16510-ZE6-000
GOVERNOR ASSY.
6
16511-ZE1-000
WEIGHT, GOVERNOR
7
16512-ZE6-000
HOLDER, GOVERNOR WEIGHT
8
16513-ZE1-000
PIN, GOVERNOR WEIGHT
9
16515-ZE6-010
SEE PART DETAILS - PRI; SHAFT, GOVERNOR HOLDER
10
16525-ZE6-010
PLATE, GOVERNOR SHAFT HOLDER
11
16531-Z1T-000
SLIDER, GOVERNOR
12
17240-ZE6-000
COLLAR, EXTENSION
13
23411-ZE7-010
SEE PART DETAILS - PRI; SHAFT, DRIVE
14
23431-ZG9-T20
GEAR, DRIVEN (18T)
15
90017-883-000
Болт (6х32)
16
90131-ZE1-000
Сливная пробка
17
90451-ZE1-000
WASHER, THRUST (6MM)
18
90452-166-600
ШАЙБА, 12 MM
19
90452-187-000
WASHER (10X21)
20
90601-ZE1-000
WASHER, DRAIN PLUG (10.2MM)
21
90602-ZE1-000
SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER
22
90701-ZE6-000
PIN, LOCK (2.0)
23
91205-Z1V-003
OIL SEAL (12X20X6.5)
24
91252-Z1V-003
OIL SEAL (25.4X40X7)
25
91301-Z1V-003
O-RING (22.1X2.2)
26
91302-Z1V-003
O-RING (25.5X3)
27
94101-06800
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)
28
94301-08140
Направляющая (8х14)
29
95701-06012-08
Болт (6X12)
30
95701-08050-00
Болт (8x50)
