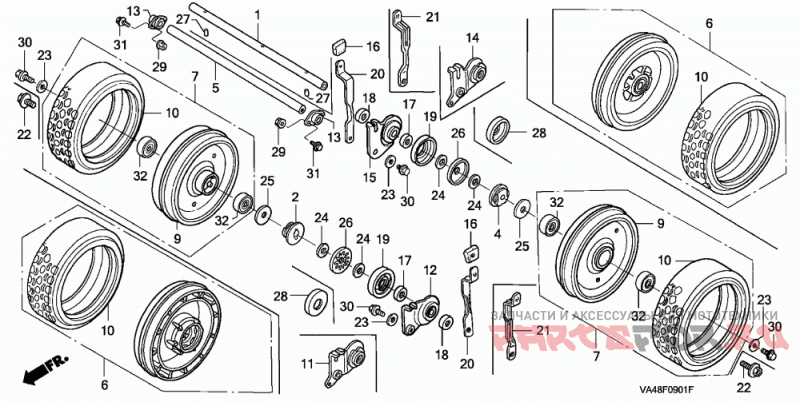

Rear Wheel (hrc215, Hrc216, Hrc216k1)

Honda HRC215 PXA LAWN MOWER, USA, VIN# MZAU-6000001 TO MZAU-6099999

Rear Wheel (hrc215, Hrc216, Hrc216k1)

#

oem код

название

цена

1

SHAFT, FINAL

SHAFT, FINAL

7

SEE PART DETAILS - PRI; WHEEL (9INCH)

SEE PART DETAILS - PRI; WHEEL (9INCH)

10

TIRE (9 INCH)

TIRE (9 INCH)

12

ARM, R. RR. ADJUSTING

ARM, R. RR. ADJUSTING

13

HOLDER, RR. AXLE

HOLDER, RR. AXLE

15

ARM, L. RR. ADJUSTING

ARM, L. RR. ADJUSTING

16

GRIP, ADJUSTER

GRIP, ADJUSTER

18

COLLAR, DUST SEAL

COLLAR, DUST SEAL

21

PLATE, RR. ADJUSTING

PLATE, RR. ADJUSTING

23

WASHER, RR. ENGINE MOUNTING

WASHER, RR. ENGINE MOUNTING

27

ROLLER (5X23.8)

ROLLER (5X23.8)

28

COLLAR, FINAL SHAFT

COLLAR, FINAL SHAFT

29

Гайка (6mm)

Гайка (6mm)

30

Болт (8x16)

Болт (8x16)

31

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

32

BEARING, RADIAL BALL (6002UU)

BEARING, RADIAL BALL (6002UU)
