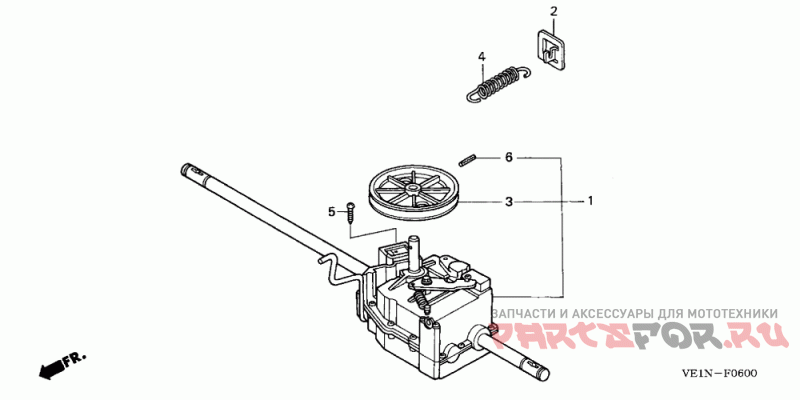

Transmission (tda)
Honda HRB217 TDA LAWN MOWER, USA, VIN# MAEA-1000001
| # | oem код | название | цена |
|---|---|---|---|
1 | 20001-VG4-H02 TRANSMISSION ASSY. | TRANSMISSION ASSY. | |
2 | 21557-VE2-800 PLATE, TENSION SPRING | PLATE, TENSION SPRING | |
3 | 22421-VG4-H00 PULLEY, DRIVEN | PULLEY, DRIVEN | |
4 | 24468-VE1-T00 SPRING, WHEEL TENSION | SPRING, WHEEL TENSION | |
5 | 93913-25220 SCREW, TAPPING (5X12) (PO) | SCREW, TAPPING (5X12) (PO) | |
6 | 94305-50362 PIN, SPRING (5X36) | PIN, SPRING (5X36) |
