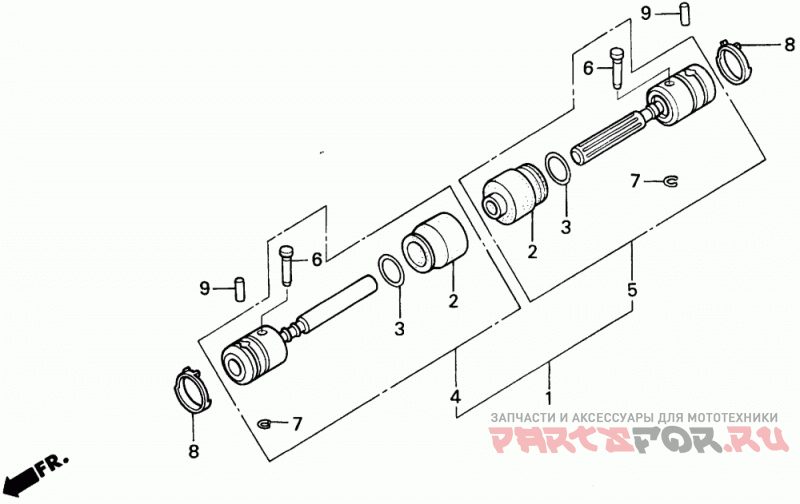

Joint - Sxa, Hxa, Sda
Honda HRA215 SXA LAWN MOWER, USA, VIN# MZAL-6000001 TO MZAL-6099999
| # | oem код | название | цена |
|---|---|---|---|
1 | 22100-VA4-803 SEE PART DETAILS - PRI; JOINT ASSY. | SEE PART DETAILS - PRI; JOINT ASSY. | |
2 | 22123-VA4-801 BOOT, JOINT | BOOT, JOINT | |
3 | 22127-VA4-801 Кольцо уплотнительное | Кольцо уплотнительное | |
4 | 22150-VA4-803 JOINT SUB-ASSY. (A) | JOINT SUB-ASSY. (A) | |
5 | 22160-VA4-803 JOINT SUB-ASSY. (B) | JOINT SUB-ASSY. (B) | |
6 | 22181-VA4-802 PIN, DRIVE | PIN, DRIVE | |
7 | 22191-VA4-801 Кольцо | Кольцо | |
8 | 23435-VA2-701 CLIP, CLUTCH SHAFT | CLIP, CLUTCH SHAFT | |
9 | 96220-40178 ROLLER (4X17.8) | ROLLER (4X17.8) |
