  5. HRA215 SXA LAWN MOWER, USA, VIN# MZAL-6000001 TO MZAL-6099999

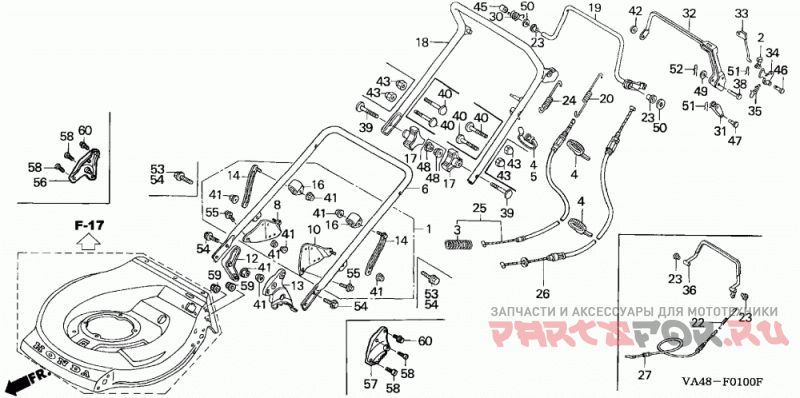

Handlebar (hra215, Hrc215, Hrc216) K0

Honda HRA215 SXA LAWN MOWER, USA, VIN# MZAL-6000001 TO MZAL-6099999

Honda
#oem кодцена
1
06531-VA4-020
SUPPORT KIT, HANDLE
2
16956-892-000
JOINT, ROD
4
32901-VB5-800
TIE, CABLE
6
53110-VB5-G01ZA
SEE PART DETAILS - PRI; PIPE, HANDLE (LOWER) *NH105*
8
53113-VA4-020
SEE PART DETAILS - PRI; STAY, R. HANDLE SUPPORT
10
53114-VA4-020
SEE PART DETAILS - PRI; STAY, L. HANDLE SUPPORT
12
53115-VA4-000ZB
STAY, R. HANDLE *NH192M*
13
53116-VA4-000ZB
STAY, L. HANDLE *NH192M*
14
53118-VA4-000
PLATE, HANDLE SUPPORT
16
53119-VA4-000
HANGER, HANDLE SUPPORT
17
53125-VA4-K10
SEE PART DETAILS - PRI; GRIP, HANDLE JOINT (UPPER)
18
53150-VA4-J00ZC
SEE PART DETAILS - PRI; PIPE, HANDLE (UPPER) *NH105*
19
54410-VA3-J00
Рычаг
20
54411-VA3-J00
Пружина
23
54412-952-770
BUSH, CLUTCH LEVER
25
54510-VA3-J03
SEE PART DETAILS - SUP; CABLE, SELF
26
54530-VA3-J02
SEE PART DETAILS - SUP; CABLE, ROTO-STOP (CAPRO)
26
54530-VA3-J03
SEE PART DETAILS - PRI; CABLE, ROTO-STOP (CAPRO)
30
75118-VA3-J00
SPRING, R. STOP RETURN
31
75128-VA3-J00
ARM, ROTO-STOP CABLE
32
75161-VA3-J01
LEVER, ROTO-STOP
33
75165-VA3-J00
ROD, RATCHET PUSH
34
75166-VA3-J01
LEVER, LOCK
35
75168-VA4-000
SPRING, RATCHET RETURN
38
90106-VA4-800
PIN, CLUTCH LEVER
39
90109-VA4-000
BOLT, HANDLE HOLDER (8X41)
41
90115-659-003
NUT, SELF-LOCK (8MM)
41
90309-428-731
NUT, FLANGE (M8X1.25)
45
90552-VA3-J00
COLLAR (8X11X13.5)
46
90753-VA3-J00
PIN, LOCK LEVER HINGE (6X30)
47
90754-VA3-J00
PIN, CABLE JOINT (6X17)
49
94101-06000
SEE PART DETAILS - SUP; WASHER, PLAIN (6MM)
49
94101-06800
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)
50
94101-08000
Шайба (8mm)
51
94251-06000
PIN, LOCK (6MM)
52
94251-08000
PIN, LOCK (8MM)
54
95701-08014-00
BOLT, FLANGE (8X14)
55
95701-08018-08
Болт (8x18)
