  5. HRA215 SXA LAWN MOWER, USA, VIN# MZAL-6000001 TO MZAL-6099999

Поршни

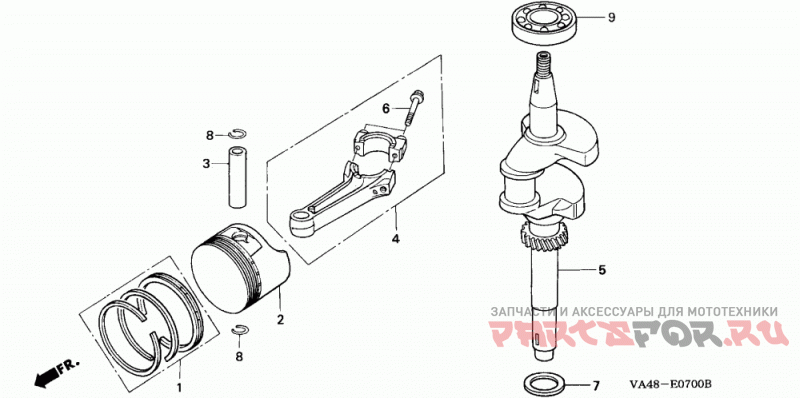

Honda HRA215 SXA LAWN MOWER, USA, VIN# MZAL-6000001 TO MZAL-6099999

Honda
#oem кодцена
1
13013-ZG9-T01
SEE PART DETAILS - SUP; RING SET, PISTON (OVER SIZE)
1
13012-ZG9-T01
SEE PART DETAILS - SUP; RING SET, PISTON (OVER SIZE)
1
13013-ZG9-003
SEE PART DETAILS - PRI; RING SET, PISTON (OVER SIZE)
1
13011-ZG9-004
SEE PART DETAILS - SUP; RING SET, PISTON (OVER SIZE)
1
13010-ZG9-T00
SEE PART DETAILS - SUP; RING SET, PISTON (STD)
1
13013-ZG9-004
RING SET, PISTON (OVER SIZE)
1
13012-ZG9-004
SEE PART DETAILS - PRI; RING SET, PISTON (OVER SIZE)
1
13011-ZG9-T01
SEE PART DETAILS - SUP; RING SET, PISTON (OVER SIZE)
1
13010-ZG9-004
SEE PART DETAILS - SUP; RING SET, PISTON (STD)
1
13010-ZG9-T01
SEE PART DETAILS - PRI; RING SET, PISTON (STD)
1
13013-ZG9-T00
SEE PART DETAILS - SUP; RING SET, PISTON (OVER SIZE)
1
13011-ZG9-003
SEE PART DETAILS - PRI; RING SET, PISTON (OVER SIZE)
2
13103-ZG9-010
PISTON (OVER SIZE) (0.50)
2
13102-ZG9-000
Поршень (0,25)
2
13101-ZG9-000
Поршень (STD)
2
13102-ZG9-010
Поршень (0,25)
2
13104-ZG9-010
SEE PART DETAILS - PRI; PISTON (OVER SIZE) (0.75)
3
13111-ZE0-000
Палец поршневой
4
13200-ZE6-010
ROD ASSY., CONNECTING
4
13200-ZE6-315
ROD ASSY., CONNECTING
5
13310-ZG9-M10
SEE PART DETAILS - SUP; CRANKSHAFT
5
13310-ZG9-P50
SEE PART DETAILS - PRI; CRANKSHAFT
6
90001-ZE1-000
Болт шатуна
7
90459-357-000
WASHER C, THRUST (25MM)
8
90551-ZE0-000
CLIP, PISTON PIN (13MM)
9
91001-878-003
BEARING, RADIAL BALL (62/22)
