Rear Wheel (p Type) + Rear Adj. Panel (p Type) для газонокосилок Honda HR21K1 PDA LAWN MOWER, JPN, VIN# HR21K1-1100004 TO HR21K1-1127597 (Все)

Москва и регионы России

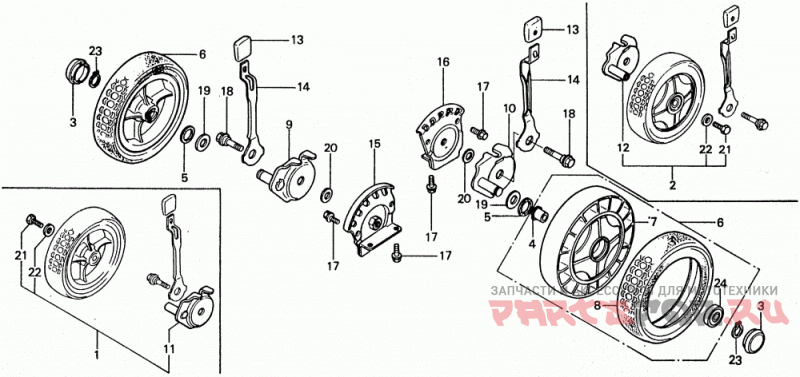

Rear Wheel (p Type) + Rear Adj. Panel (p Type)

Honda HR21K1 PDA LAWN MOWER, JPN, VIN# HR21K1-1100004 TO HR21K1-1127597

Rear Wheel (p Type) + Rear Adj. Panel (p Type)

#

oem код

название

цена

3

Колпак колеса

Колпак колеса

4

BUSH, WHEEL

BUSH, WHEEL

5

FELT, WHEEL SHAFT

FELT, WHEEL SHAFT

7

42811-960-000XC

HUB, RR. WHEEL *NH31*

HUB, RR. WHEEL *NH31*

8

TIRE, RR. (8INCH)

TIRE, RR. (8INCH)

11

ARM, R. RR. ADJUSTING

ARM, R. RR. ADJUSTING

12

ARM, L. RR. ADJUSTING

ARM, L. RR. ADJUSTING

13

GRIP, ADJUSTER

GRIP, ADJUSTER

14

PLATE, RR. ADJUSTING

PLATE, RR. ADJUSTING

15

PANEL, R. RR. ADJUSTING

PANEL, R. RR. ADJUSTING

17

BOLT, FLANGE (6X12) (CT200)

BOLT, FLANGE (6X12) (CT200)

18

BOLT, RR. ADJUSTING ARM

BOLT, RR. ADJUSTING ARM

20

Шайба (10mm)

Шайба (10mm)

22

Шайба (8mm)

Шайба (8mm)

23

CIRCLIP (OUTER) (15MM)

CIRCLIP (OUTER) (15MM)

24

BEARING, RADIAL BALL (6202)

BEARING, RADIAL BALL (6202)
