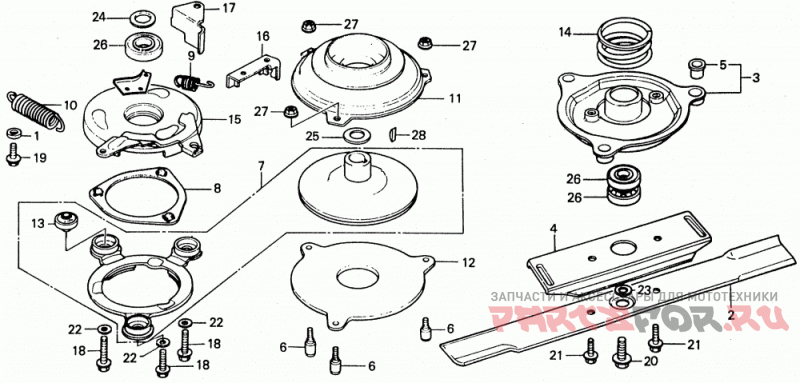

Rotary Blade + Roto-stop

Honda HR21-5 SDA LAWN MOWER, JPN, VIN# HR21-5-1019070

Honda
#oem кодцена
1
19512-883-000
COLLAR, FAN
2
72511-960-004
SEE PART DETAILS - SUP; BLADE, ROTARY
2
72511-960-000
SEE PART DETAILS - SUP; BLADE, ROTARY
2
M2100-576-91938
SEE PART DETAILS - SUP; BLADE, ROTARY
2
72511-960-020
SEE PART DETAILS - SUP; BLADE, ROTARY
2
72511-VA2-690
SEE PART DETAILS - PRI; BLADE, ROTARY (21")
2
72511-VA4-000
SEE PART DETAILS - SUP; BLADE, ROTARY
3
72600-960-000
HOLDER ASSY., BLADE
4
72612-960-000
HOLDER, BLADE
5
72613-952-000
BUSH, BLADE HOLDER
6
72615-952-010
PIN, DRIVE
8
75110-952-000
Фиксатор
9
75112-960-000
SPRING, ROTO-STOP CLUTCH
10
75113-960-000
SPRING, ROTO-STOP CLUTCH RETURN
11
75127-960-000
PULLEY, DRIVE
12
75131-952-010
DISK, DRIVEN
13
75132-960-000
Демпфер резиновый
14
75135-960-000
Пружина
16
75142-960-000
PLATE, CABLE HOOK
18
90017-883-000
Болт (6х32)
19
90029-888-000
Болт (6x16)
20
90102-952-003
BOLT, FLANGE UNF (3/8-24)
21
90105-VA3-J01
BOLT, HEX. (10X25)
22
90402-921-000
Шайба (6mm)
23
90409-952-000
Шайба (10mm)
24
90501-952-010
SEE PART DETAILS - PRI; WASHER, THRUST (22X32X3)
24
90501-952-000
SEE PART DETAILS - SUP; WASHER, THRUST (22X32X3)
26
91103-VA4-003
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (60/22UU)
26
91101-952-003
SEE PART DETAILS - SUP; BEARING, RADIAL BALL (60/22UU)
27
94050-08080
Гайка
28
94401-16150
KEY, WOODRUFF (16X15)
