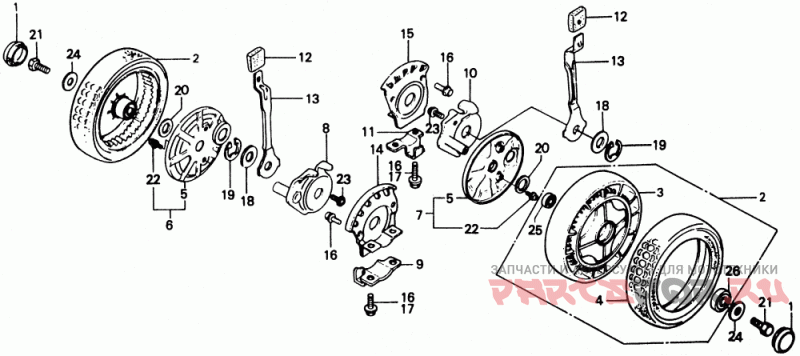

K2s, 5s Rear Wheel + Rear Adjusting Panel

Honda HR21-5 SDA LAWN MOWER, JPN, VIN# HR21-5-1019070

Honda
#oem кодцена
1
42755-952-000
Колпак колеса
2
42800-960-770XC
WHEEL ASSY., RR. *NH31*
3
42811-960-770XC
HUB, RR. WHEEL *NH31*
4
42861-952-000
TIRE, RR. (8INCH)
5
42865-960-771
COVER, WHEEL
6
42866-960-770
COVER, R. WHEEL
7
42867-960-770
COVER, L. WHEEL
8
42930-960-770
ARM, R. RR. ADJUSTING
9
42938-960-770
HOLDER, R. ADJUSTING ARM
11
42948-960-770
HOLDER, L. ADJUSTING ARM
12
42952-952-000
GRIP, ADJUSTER
13
42961-952-770
PLATE, RR. ADJUSTING
14
42980-960-770
PANEL, R. RR. ADJUSTING
15
42990-960-770
PANEL, L. RR. ADJUSTING
16
90013-883-000
BOLT, FLANGE (6X12) (CT200)
17
90022-888-010
BOLT, FLANGE (6X20) (CT200)
18
90403-952-770
WASHER, PLAIN (22MM)
19
90405-952-770
E-RING (19MM)
20
90451-107-000
WASHER, THRUST (15MM)
22
93892-04008-08
SCREW-WASHER (4X8)
23
93892-04014-08
Винт (4x14)
24
94101-08000
Шайба (8mm)
25
96150-60020-10
BEARING, RADIAL BALL (6002)
26
96150-62020-10
BEARING, RADIAL BALL (6202UU)
