  5. HR21-5 SDA LAWN MOWER, JPN, VIN# HR21-5-1019070

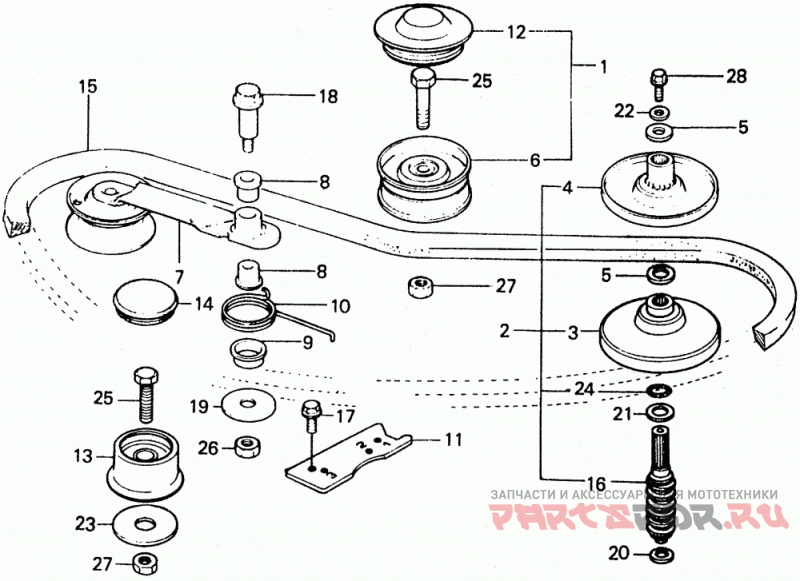

21-5s Tensioner Arm + V-belt

Honda HR21-5 SDA LAWN MOWER, JPN, VIN# HR21-5-1019070

Honda
#oem кодцена
1
04401-960-770
SEE PART DETAILS - PRI; ROLLER
2
06221-960-305
SEE PART DETAILS - PRI; PULLEY KIT, DRIVE
3
22110-960-771
FACE, DRIVEN
4
22120-960-770
FACE, MOVABLE DRIVEN
5
22131-960-770
COLLAR, SPEED CONTROL
7
22520-960-770
ARM, TENSIONER
8
22524-952-770
BUSH, TENSIONER ARM
9
22525-952-770
BUSH, CHANGE ARM
10
22526-960-720
SPRING, TENSIONER ARM
12
22529-960-770
GROMMET, TENSION ROLLER
15
23161-952-771
V-BELT (35)
15
23161-960-771
V-BELT (35)
16
23411-960-770
Приводной механизм
17
90013-883-000
BOLT, FLANGE (6X12) (CT200)
18
90104-952-770
BOLT, TENSIONER ARM
20
90443-844-000
Шайба (8mm)
21
90459-107-000
ШАЙБА, 12 MM
22
90474-704-000
WASHER (6X17)
24
91205-952-771
O-RING (11.7X1.2)
25
92101-10028-0A
BOLT, HEX. (10X28)
26
94001-08000-0S
Гайка (8мм)
27
94001-10000-0S
Гайка (10mm)
28
95701-06012-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)
