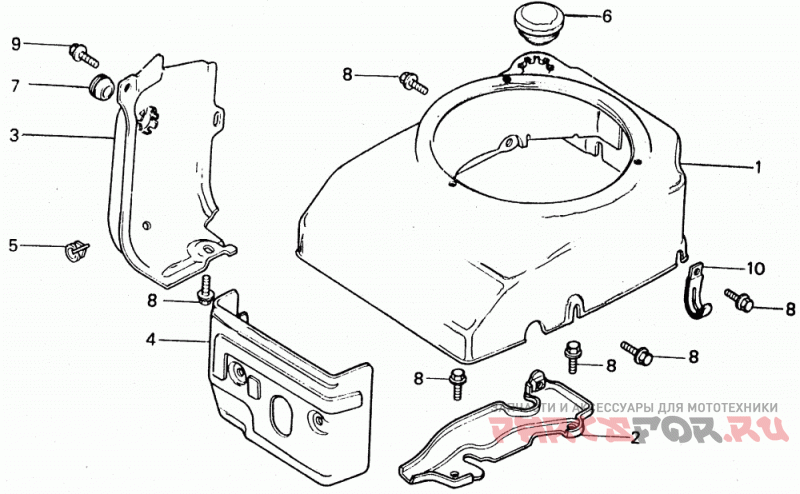

21-5s Fan Cover + Side Plate
Honda HR21-5 SDA LAWN MOWER, JPN, VIN# HR21-5-1019070
| # | oem код | название | цена |
|---|---|---|---|
1 | 19610-894-000H COVER, FAN *R8* | COVER, FAN *R8* | |
2 | 19621-894-000 PLATE, SIDE | PLATE, SIDE | |
3 | 19631-894-000 Защитный кожух | Защитный кожух | |
5 | 30701-883-000 CLIP, IGNITION WIRE (8MM) | CLIP, IGNITION WIRE (8MM) | |
6 | 70529-657-670 GROMMET B, SIDE PANEL | GROMMET B, SIDE PANEL | |
7 | 81329-567-020 GROMMET, DRAIN HOLE | GROMMET, DRAIN HOLE | |
8 | 90013-883-000 BOLT, FLANGE (6X12) (CT200) | BOLT, FLANGE (6X12) (CT200) | |
9 | 90014-952-000 Болт (6x14) | Болт (6x14) | |
10 | 91405-671-000 Зажим троса | Зажим троса |
