  5. HR195 SXA LAWN MOWER, USA, VIN# MZAK-6000001

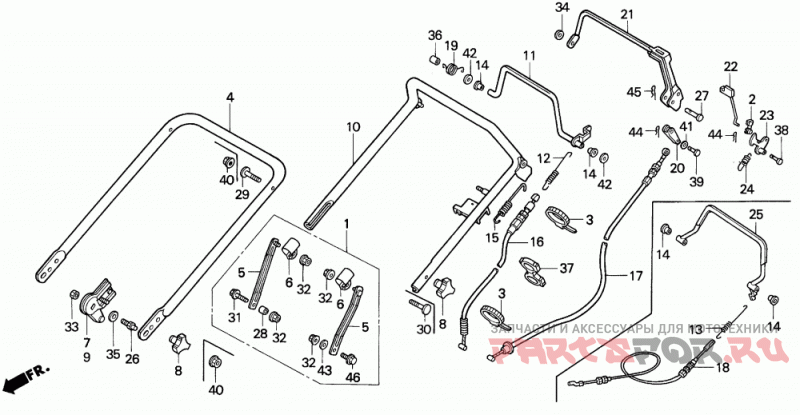

Руль

Honda HR195 SXA LAWN MOWER, USA, VIN# MZAK-6000001

Honda
#oem кодцена
2
16956-892-000
JOINT, ROD
3
32901-VB5-800
TIE, CABLE
4
53110-VA5-801ZA
PIPE, HANDLE (LOWER)
7
53120-VA3-000ZB
SEE PART DETAILS - PRI; STAY, R. HANDLE *NH190M*
8
53125-VA4-K10
SEE PART DETAILS - PRI; GRIP, HANDLE JOINT (UPPER)
9
53130-VA3-000
SEE PART DETAILS - SUP; STAY, L. HANDLE
9
53130-VA3-000ZB
SEE PART DETAILS - PRI; STAY, L. HANDLE *NH190M*
10
53150-VA5-J00
PIPE, HANDLE (UPPER)
11
54410-VA5-J00
Рычаг
12
54411-VA3-J00
Пружина
14
54412-952-770
BUSH, CLUTCH LEVER
16
54510-VA3-J03
SEE PART DETAILS - SUP; CABLE, SELF
16
54510-VA3-J04
SEE PART DETAILS - PRI; CABLE, SELF (CAPRO)
17
54530-VA3-J02
SEE PART DETAILS - SUP; CABLE, ROTO-STOP (CAPRO)
19
75118-VA3-J00
SPRING, R. STOP RETURN
20
75128-VA3-J00
ARM, ROTO-STOP CABLE
21
75161-VA5-J01
LEVER, ROTO-STOP
22
75165-VA3-J00
ROD, RATCHET PUSH
23
75166-VA3-J01
LEVER, LOCK
24
75168-VA4-000
SPRING, RATCHET RETURN
26
90101-VA5-020
SEE PART DETAILS - PRI; BOLT, HANDLE HOOK
27
90106-VA4-800
PIN, CLUTCH LEVER
29
90109-VA4-000
BOLT, HANDLE HOLDER (8X41)
33
90312-SB2-000
NUT, SELF-LOCK (8MM)
35
90436-VA3-000
WASHER, SPECIAL (22X8.5X2)
36
90552-VA3-J00
COLLAR (8X11X13.5)
37
90651-VA3-J01
SEE PART DETAILS - PRI; CLIP, CABLE (22.2)
38
90753-VA3-J00
PIN, LOCK LEVER HINGE (6X30)
39
90754-VA3-J00
PIN, CABLE JOINT (6X17)
41
94101-06000
SEE PART DETAILS - SUP; WASHER, PLAIN (6MM)
41
94101-06800
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)
42
94101-08000
Шайба (8mm)
44
94251-06000
PIN, LOCK (6MM)
45
94251-08000
PIN, LOCK (8MM)
