  5. HR194 SXA LAWN MOWER, JPN, VIN# HR194-1000001

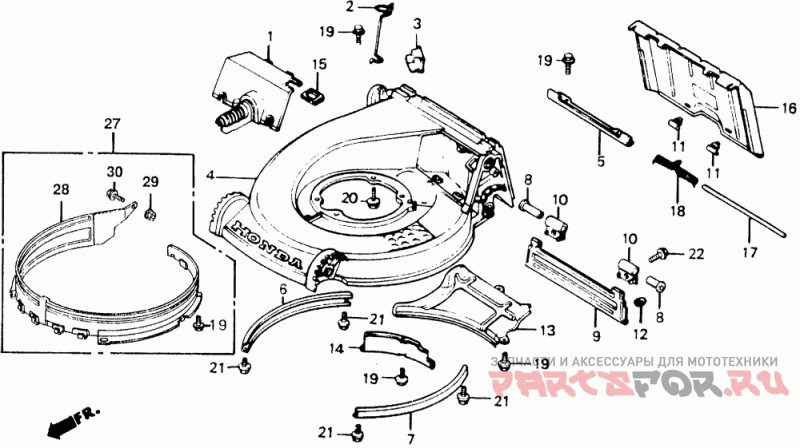

Hr194 Cutter Housing

Honda HR194 SXA LAWN MOWER, JPN, VIN# HR194-1000001

Honda
#oem кодцена
1
54241-VA5-801ZA
COVER, DRIVESHAFT *NH35M*
2
54515-VA5-000
Направляющая троса
3
75136-VA5-000
GROMMET D, CABLE
4
761A1-VA5-803ZB
HOUSING, CUTTER *NH192M*
5
76113-VA5-000
HINGE, DISCHARGE GUARD
7
76116-VA5-640
GUARD, L. HOUSING
8
76117-VA3-800
BUSH, SAFETY SHIELD
10
76119-VA3-000
HANGER, SAFETY SHIELD
11
76122-VA4-000
STOPPER, DISCHARGE GUARD
12
76122-952-000
STOPPER, DISCHARGE GUARD
13
76151-VA5-800
GUIDE, SCROLL
15
76231-VA3-000
GROMMET C, CABLE
16
76310-VA5-000ZB
GUARD, DISCHARGE *NH105*
16
76310-VA5-000
GUARD, DISCHARGE
17
76312-VA5-000
SHAFT, DISCHARGE GUARD
18
76314-VA5-000
SEE PART DETAILS - SUP; SPRING, GUARD RETURN
19
90013-883-000
BOLT, FLANGE (6X12) (CT200)
20
90102-VA5-000
BOLT, ENGINE SETTING
21
90107-VA5-640
Болт (6x10)
22
95701-06012-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)
29
94050-06080
Гайка (6mm)
30
95701-06016-08
Болт (6x16)
