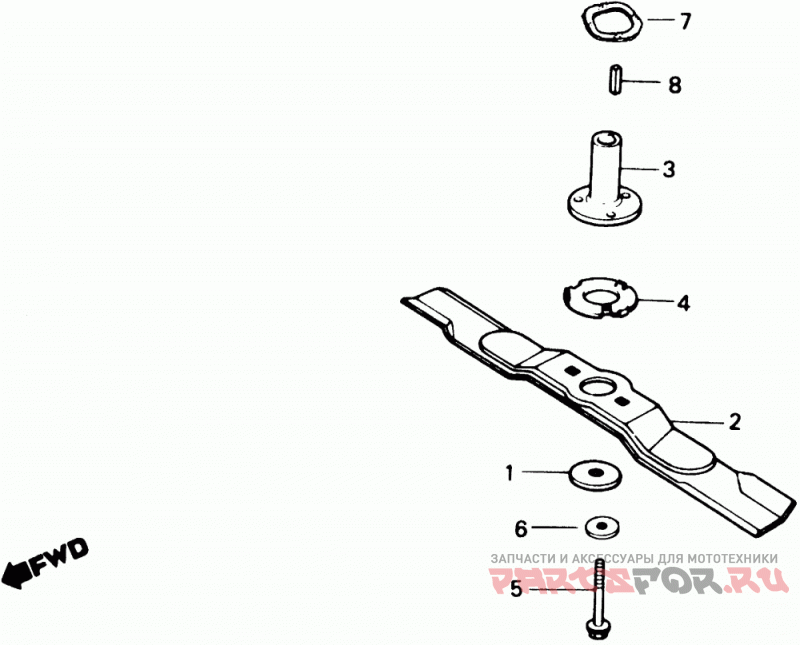

Rotary Blade
Honda HR17EPA EPA LAWN MOWER, USA, VIN# MAER-6000001
| # | oem код | название | цена |
|---|---|---|---|
1 | 40213-041-730 WASHER (42X8.5) | WASHER (42X8.5) | |
2 | 72511-VA9-G00 SEE PART DETAILS - PRI; BLADE, ROTARY | SEE PART DETAILS - PRI; BLADE, ROTARY | |
4 | 72612-VA9-000 WASHER, BLADE HOLDER | WASHER, BLADE HOLDER | |
5 | 90108-VD4-G00 Болт | Болт | |
6 | 90436-VA3-000 WASHER, SPECIAL (22X8.5X2) | WASHER, SPECIAL (22X8.5X2) | |
7 | 90503-VD4-G01 Шайба | Шайба | |
8 | 90745-VD4-G01 KEY, INCH (1/8) | KEY, INCH (1/8) | |
8 | 90745-VD4-G00 KEY, INCH (1/8) | KEY, INCH (1/8) |
