Seastar solutions kicker cable tiebar

Miscellaneous steering & control accessories. Steering & control

    This new Seastar product allows a user to manually steer an auxiliary engine (kicker motor) using their existing Seastar hydraulic steering system. Today this is accomplished with a variety of solid mechanical linkages between the main engine and the auxiliary engine. Teleflex has developed a patent pending design that incorporates a TFXtreme cable as the linkage between the two engines.
    • Flexible cable allows for adjustable locations of kicker motor
    • Allows independent trim/tilt of both engines
    • Allows full steering stroke of both engines
    • Simplified installation using universal ABYC steering connection (as per ABYC P17 & P21 standards) on kicker motor
    • Retrofittable to SeatStar Front Mount Cylinders
    • Incorporates unique patented cable technology
    • Cable Type: TFXtreme 40 Series
    • Max Engine Power: 20HP

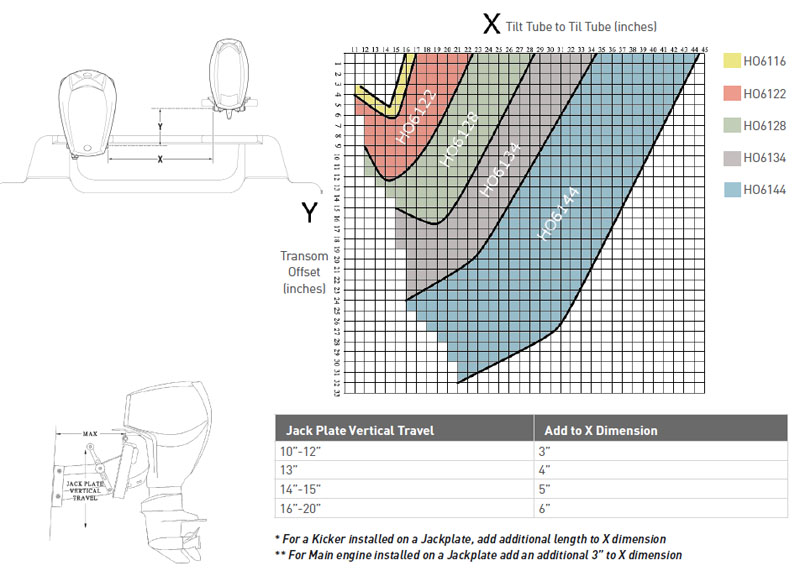

    Note: Kicker Cable Tie Bar systems require a minimum clearance of 14" from the end of the tilt tube towards the motor side well or gunnel.

    детальцена
    709644
    16 Inches Cable Length -
     ---
    Цена неизвестна
    709645
    22 Inches Cable Length -
     ---
    Цена неизвестна
