Dock edge howell floating docks
Dock parts & accessories. Mooring

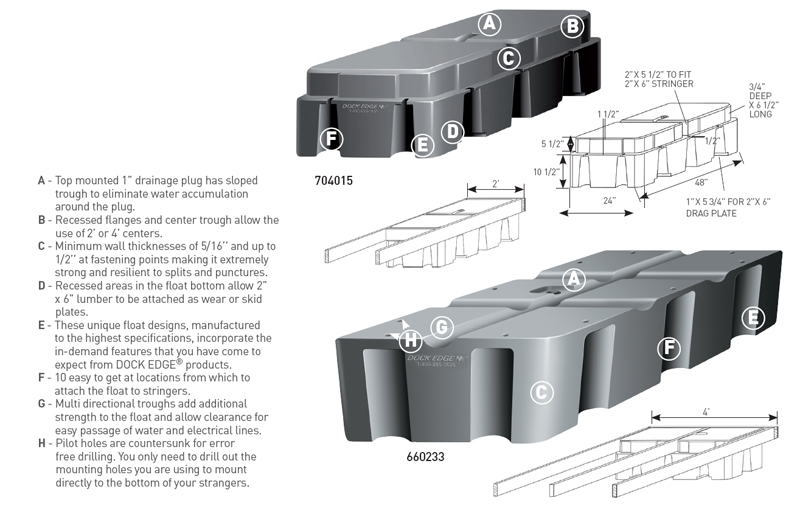

- ROTATIONAL MOLDED: From height density black virgin polyethylene with UV Inhibitors ensuring the most rugged float possible Wall thickness is a minimum 5/16" and up to 1/2" at fastening points and corner edges, ensuring extremely strong resistance to splits and punctures (400 &550)
- RECESSED FLANGES: And center channel allow this versatile float to be used in standard 2’ or 4’ centers. Using standard 2" x 6" lumber the surface of the dock will be situated about 14" above the water. (based on 25 lbs. flotation/sq. ft. of dock). Use 8", 10" or 12" lumber for increased freeboard (550).
- 1" DRAINAGE PLUG: Has a sloped channel to eliminate water accumulation around the plug. Water can also be added for ballast or to achieve neutral buoyancy when retrofitting old docks and then pumped out after positioning the float (400 &550).
- RECESSED CORNERS: Allow clearance for most hardware and nut and bolt heads. This reduces the chance of rub through allowing the float to be positioned tightly into the corners and flush with the edges for maximum stability (550).
- FLOTATIONAL CAPACITY: For the HOWELL 550 is 550 lbs with overall dimensions of 24" x 48" x 16" high and a tare weight of 40 lbs. Flotational capacity for the HOWELL 400 is 400 lbs with overall dimensions of 24" x 48" x 12" high.
| деталь | цена | |
|---|---|---|
| 660233 Howell 400 Floating Dock - OEM# 99-242-F | --- Цена неизвестна | |
| 703123 Howell 400 Foam Filled Floating Dock - OEM# 99-241-F | --- Цена неизвестна | |
| 704015 Howell 550 Floating Dock - OEM# 99-246-F | --- Цена неизвестна | |
| 704855 Howell 250 Floating Dock (empty) - OEM# 99-238-F | --- Цена неизвестна | |
