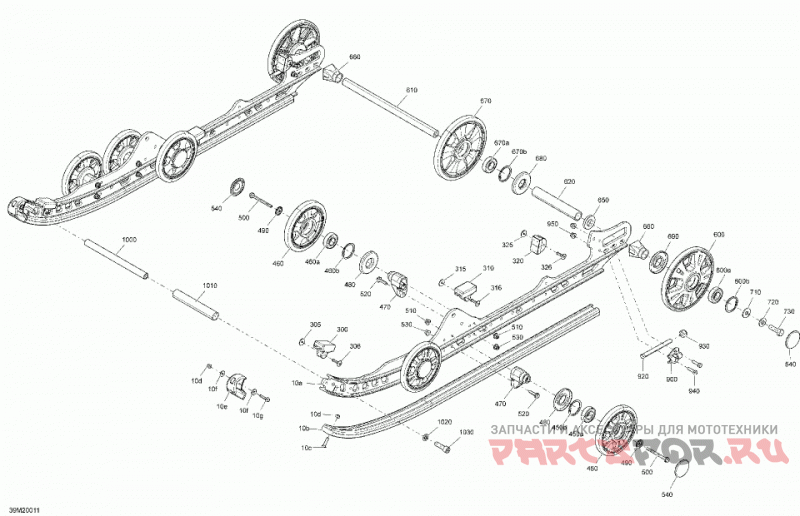

08- suspension, rear - upper section

Ski-Doo (Bombardier) 001 - MXZ 600 CARB - North America

Ski-Doo (Bombardier)
#oem кодцена
1000
503191260
Axle Strap.
1010
503192678
Spacer.
1020
503192496
Washer.
1030
205503554
Socket Head Screw M10 X 35.
10a
503192152
Runner 120'.
10b
503191301
Black Slider Shoe 120
10c
208562531
Phillips Screw M6 X 25.
10d
232561434
Elastic Stop Nut M6.
10e
503191137
Runner Protector.
10f
250200140
Washer.
10g
207652544
Hex. Flanged Screw M5 X 25.
300
503190576
Rubber Stopper.
305
503191273
Washer.
306
293150224
Rivet Pop 3/16.
310
503190576
Rubber Stopper.
315
503191273
Washer.
316
293150224
Rivet Pop 3/16.
320
503191291
Rubber Stopper.
325
503191273
Washer.
326
293150224
Rivet Pop 3/16.
450a
503190396
Ball Bearing.
450b
415129371
Retaining Ring.
460a
503190396
Ball Bearing.
460b
415129371
Retaining Ring.
470
503193894
Casted Support.
480
503190434
Labyrinth Seal.
490
503191820
Wheel Cup M6.
500
250000944
Hex. Flange Screw M6 X 70.
510
233261466
Hex. Flanged Elastic Nut M6.
520
250000945
Hex. Flange Screw M6 X 25.
530
233261466
Hex. Flanged Elastic Nut M6.
540
503192771
Black, Wheel Cap.
600a
503190396
Ball Bearing.
600b
415129371
Retaining Ring.
610
503190429
Rear Axle.
620
503190430
Spacer.
650
503190432
Washer.
660
503190428
Rear Wheel Spacer.
670a
503190396
Ball Bearing.
670b
415129371
Retaining Ring.
680
503190682
Labyrinth Seal.
690
503190434
Labyrinth Seal.
710
503191910
Washer.
720
234201474
Conical Spring Washer 10 mm.
730
250000817
Hex Screw With Nilon Patch, M10 X 35.
900
503192583
Tensioner.
920
230100054
Hex Screw M10 x 100.
930
233601466
Elastic Locking Nut M10.
940
250000619
Hex Screw M6 X 25.
950
233261466
Hex. Flanged Elastic Nut M6.
