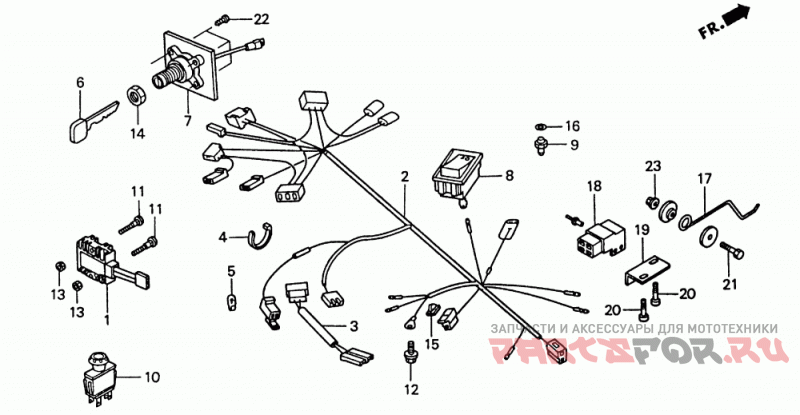

Жгут проводов

Honda HA4120 H48A LAWN TRACTOR, USA, VIN# MZCJ-6000001

Honda
#oem кодцена
1
31620-ZG5-013
SEE PART DETAILS - SUP; RECTIFIER ASSY., REGULATOR (20A)
1
31620-ZG5-003
SEE PART DETAILS - SUP; RECTIFIER ASSY., REGULATOR (20A)
2
32100-V09-A02
WIRE HARNESS ASSY., MAIN
2
32100-V09-A01
WIRE HARNESS ASSY., MAIN
3
32105-V09-A01
SUB-WIRE HARNESS ASSY.
4
32901-V09-A01
TIE, CABLE
5
34901-V09-A01
BULB
6
35110-772-013
SEE PART DETAILS - PRI; KEY, COMBINATION SWITCH
6
35110-772-003
SEE PART DETAILS - SUP; KEY, COMBINATION SWITCH
7
35170-V09-A02
SWITCH ASSY., MAIN
7
35170-V09-A01
SWITCH ASSY., MAIN
8
35200-V09-A01
SWITCH ASSY., LIGHTING
9
35470-V09-A01
SWITCH ASSY., NEUTRAL
10
35510-V09-A01
SWITCH ASSY., P.T.O. CLUTCH
10
35510-V09-A02
SWITCH ASSY., P.T.O. CLUTCH (AM12793)
11
90124-V09-A01
Волт (6x25)
12
95701-06012-07
Болт (6X12)
13
90316-V09-A01
Гайка
14
90317-V09-A01
NUT, KNURLED
15
90653-V09-A01
Клипс
16
91351-V09-A01
O-RING, WIRING
18
35575-V09-A01
SWITCH, BRAKE LIGHT (AM108483)
19
38255-V09-A01
BRACKET, REVERSE (MT132262)
20
90168-V09-A01
SCREW, HEX. (5/16-18)
21
90169-V09-A01
BOLT (8X35) (03M7187)
22
90170-V09-A01
SCREW, TAPPING (#8-32)
23
90304-V09-D01
NUT D, LOCK (8MM)
