Drive train, main gearcase internals - r19rge99f2 / ff / sc2 / sff (702515) для мотовездеходов Polaris Ranger R19RGE99F2/FF/SC2/SFF/PCF/PFF POLARIS GENERAL 1000 EPS EU TR ZUG MD (2019)

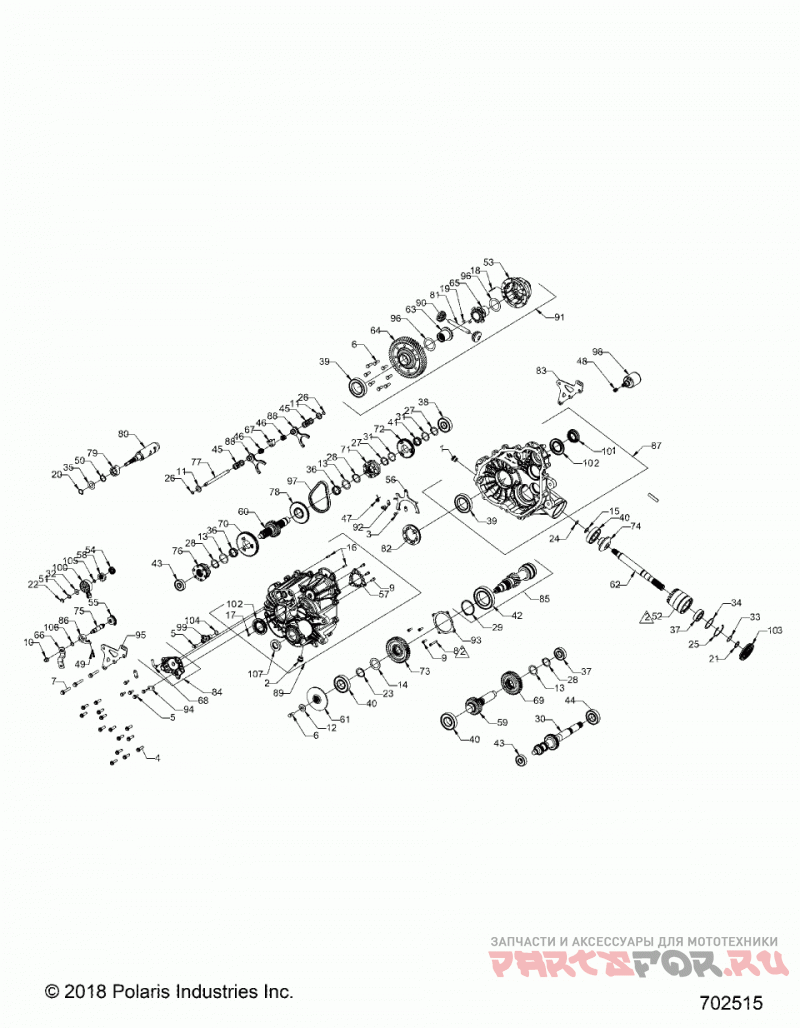

Drive train, main gearcase internals - r19rge99f2 / ff / sc2 / sff (702515)

Polaris Ranger R19RGE99F2/FF/SC2/SFF/PCF/PFF POLARIS GENERAL 1000 EPS EU TR ZUG MD

Drive train, main gearcase internals - r19rge99f2 / ff / sc2 / sff (702515)

oem код

название

цена

3234755

PLUG, M18 X 1.5

3234756

PLUG, M18 X 1.5, MAGNETIC

3234309

SCREW, TORX PAN HD M6 X 1 X 16

3234898

SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30

3235206

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3236169

SCREW, CAP HH M8 X 1.25 X 25

3235207

SCREW, HEX FLANGE M8 X 50

3235208

SCREW, SOCKET HEAD, CAP, M6 X 1 X 40

3235332

SCREW, SOCKET HEAD, CAP, M6 X 1 X 18

3235210

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

3234091

WASHER, CUP

3234952

WASH, BELLEVILLE 5/16 X 1.25 X 0.09

3235211

WASHER, 32.3 X 42 X 1.5

3235212

WASHER, 35.6 X 50 X 1.5

3235213

WASHER, 17.3 X 25 X 1.5

3234330

PIN, DOWEL, 6 X 20

7043746

PIN, SPRING, SLOTTED 6 X 12

3236286

PIN, DOWEL 3 X 40

3236295

PIN, DOWEL 8 X 10

3233045

RING, RETAINING, BASIC EXTERNAL 0.75

3233106

RING, RETAINING BASIC, EXTERNAL 0.984

3233834

Кольцо

3233364

RING, RETAINING, SHAFT, DIA. 1.375

3234318

RING, RETAINING, EXTERNAL SHR-66

3234269

RING, RETAINING BASIC, INTERNAL 2.047

3234090

RING, RETAINING BASIC, EXTERNAL 0.428

3234205

Стопорное кольцо

3235214

RING, RETAINING BASIC, EXTERNAL MSR-32

3235216

RING, RETAINING, VSH-237

3235754

SHAFT, INPUT 42T/20T/25T

3233378

WASHER, THRUST, 1.187 X 1.5 X 0.06

3234642

WASHER, THRUST, .446 X 0.88 X 0.025

3234272

SHIM, 1.180 OD X 0.995 ID

3234273

SHIM, 2.040 OD X 1.63 ID

3235883

SPACER, 19.4 X 34 X 2

3233014

BEARING, NEEDLE, CAGE ASSY

3233019

BEARING, BALL, 6205 C3 25X52X15

3233020

BEARING, BALL, 6305 C3, 25 X 62 X 17

3233268

BEARING, BALL, 6010 C3 50X80X16

3234065

BEARING, BALL, 6207 C3 35X72X17

3233384

BEARING, NEEDLE, CAGE ASSY

3235218

BEARING, BALL, 6012 C3 60 X 95 X 18

3234652

BEARING, BALL 6303, 17 X 47 X 14

3235496

BEARING BALL 6206 RSH2 30X62X16

3234078

SPRING, COMPRESSION, .92 O.D. X 2

3234089

SPRING, COMPRESSION, .46 I.D. X 0.73

3234276

SPRING, TORSION, RETURN

3234277

SPRING, COMPRESSION, .54 X 0.44 X 0.05 WIRE

Пружина сжатия

Пружина

SPRING, WASHER

TUBE, SNORKEL MACH

CARRIER, DIFFERENTIAL MACH

3233839

GEAR, SECTOR 16T

3233832

GEAR, SECTOR, 31T

3235455

FORK, PIVOT SHIFT REAR DIFF

PLATE, PARK 12-FACE

STAR, DETENT

SHAFT, IDLER 29T

SHAFT, REVERSE 29T

Тормозной диск

SHAFT, FRONT OUTPUT

GEAR, OUTPUT 14T MACH

3236291

GEAR, 53T OUTPUT

3236289

GEAR, OUTPUT 14T DISCONNECT MACH

BELLCRANK, 92 DEG

COLLAR, SHIFT

TUBE, VENT, 90 -1/4

GEAR, 44T STAGE 2

GEAR, LOW 67T

DOG, ENGAGEMENT 6-FACE

GEAR, 53T

GEAR, 46T STAGE 3

GEAR, 13T SNORKEL

Вал

SHIFT DOG, PARK

RAIL, SHIFT SHAFT

SPROCKET, 48T 6-FACE

PARK CAM

DRUM, SHIFT MACH

PIN, DIFFERENTIAL

DOG, ENGAGEMENT

WELDMENT, REAR MOUNT BRACKET

3235713

SUBASSEMBLY, SECTOR COVER

3235371

SUBASSEMBLY PINION

3235452

SUBASSEMBLY, PAWL, DETENT, ROLLER

3235757

SUBASSEMBLY, LH CASE

3235920

SUBASSY, SHIFT FORK

3236288

SUBASSEMBLY, PINION GEAR

3236285

SUBASSEMBLY, DIFFERENTIAL

3234934

RETAINER, FORK

3235241

Шайба

3235350

BRACKET, WIRE HARNESS

3235398

BRACKET, REAR MOUNT

3236294

WASHER, THRUST, 40.83 X 56.25 X 0.38

3234737

CHAIN, SILENT, TYPE 101, .25P X .40W X 58L

3235478

SOLENOID

4013908

Датчик скорости

100

7662299

SWITCH, ROTARY, 2 PIN RESISTIVE

101

3235495

SEAL, TRIPLE LIP, VITON HELIX 30 X47

102

3235052

SEAL, TRIPLE LIP, VITON 40X70X7

103

3235658

SEAL, TRIPLE LIP, VITON 25 X 80 X 10

104

3234302

Кольцо уплотнительное

105

3233836

O-RING, -012 VITON

106

3233828

O-RING, -014 VITON

107

3234892

SEAL, TRIPLE LIP, 0.984X1.850X0.315 VITON
