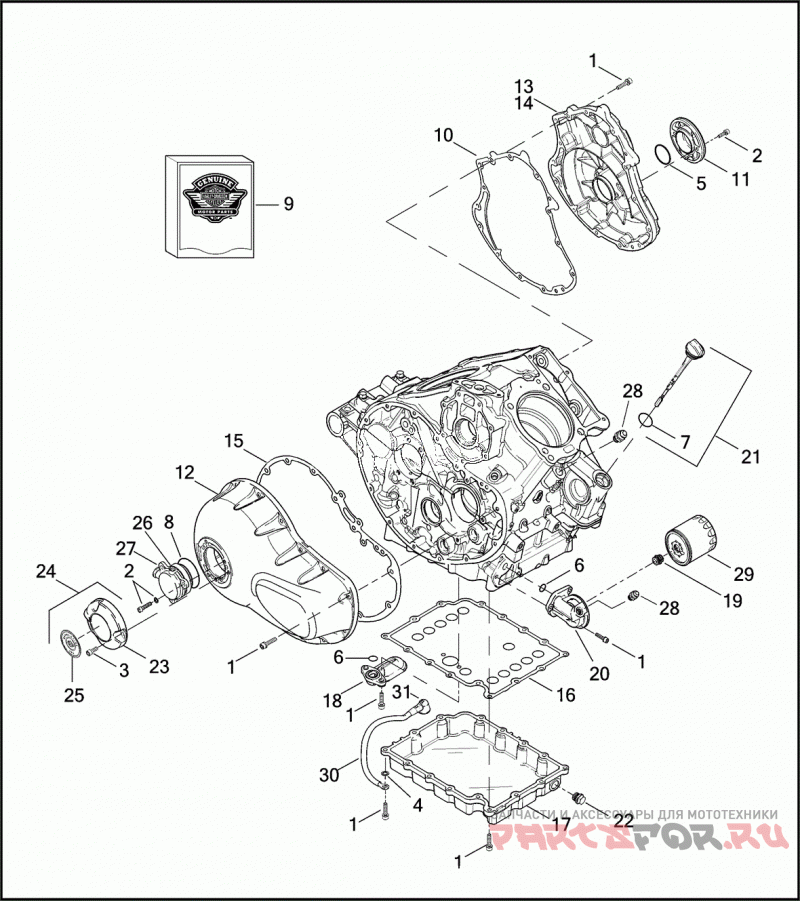

COVERS, OIL PAN/FILTER/PICKUP

Harley Davidson VRSCA 1HAZ VRSCA V-ROD (2002)

Harley Davidson
#oem кодцена
1
1004M
SCREW M6 X 1.0 X 27 SOCKET HD.
2
1009M
SCREW M6 X 1.0 X 20 SOCKET HD.
3
3729M
SCREW M6 X 1.0 X 16 SOCKET HD.
4
7124
LOCKWASHER 1/4 INTERNAL TOOTH
5
11130K
Уплотнительное кольцо
6
11312K
Уплотнительное кольцо
7
11341K
Уплотнительное кольцо
8
11347K
Уплотнительное кольцо
9
17011-01KB
Набор Прокладок Двигателя
10
25080-01K
GASKET COVER ALTERNATOR
11
25302-01K
COVER DERBY
12
25732-01K
COVER CLUTCH (CHROME)
13
25881-01KA
COVER KIT/STATOR (CHROME)
13
25895-04K
COVER ALTERNATOR (USED W/ 25881-01KA) (CHROME)
14
25881-01KA
COVER KIT/STATOR (CHROME)
15
25891-01K
GASKET CLUTCH COVER
16
26034-01K
GASKET BAFFLE PLATE
17
26103-01K
Поддон масляный
18
26393-01K
OIL PICKUP ASSEMBLY W/ 11312K
19
26399-01K
OIL FILTER ADAPTER
20
26539-01K
OIL FILTER MOUNT
21
26541-01K
OIL FILL PLUG ASSEMBLY W/ 11341K & DIPSTICK
22
26542-01K
PLUG OIL DRAIN, W/ MAGNET
23
34783-01
COVER SECONDARY CLUTCH ACTUATOR (CHROME)
23
34783-05A
COVER SECONDARY CLUTCH ACTUATOR (USED W/ 36781-01K) (CHROME)
24
34811-01
COVER ASSEMBLY SECONDARY CLUTCH ACTUATOR, W/ 34783-01 & 34989-01
26
36757-01K
SCREW BLEEDER, W/ O-RING
27
36779-01KA
SECONDARY CLUTCH ACTUATOR W/ 11347K & 36757-01K (USE 36781-01K)
27
36779-05K
SECONDARY CLUTCH ACTUATOR W/ 11347K & 36757-01K (USED W/ 36781-01K)
27
36781-01K
SECONDARY CLUTCH ACTUATOR KIT W/ 34783-05A & 36779-05K (REPLACES 36779-01KA)
28
63650-01KA
OIL FITTING ASSEMBLY FEED & RETURN, W/ O-RINGS (USED W/ 26721-01)
28
63650-04K
OIL FITTING ASSEMBLY FEED & RETURN, W/ O-RINGS & WIRE CLIP (USED W/ 26721-01C)
29
63793-01K
ENGINE OIL FILTER
30
70441-01A
CABLE ASSEMBLY W/ 70578-89
31
70578-89
BOOT CABLE ASSEMBLY
