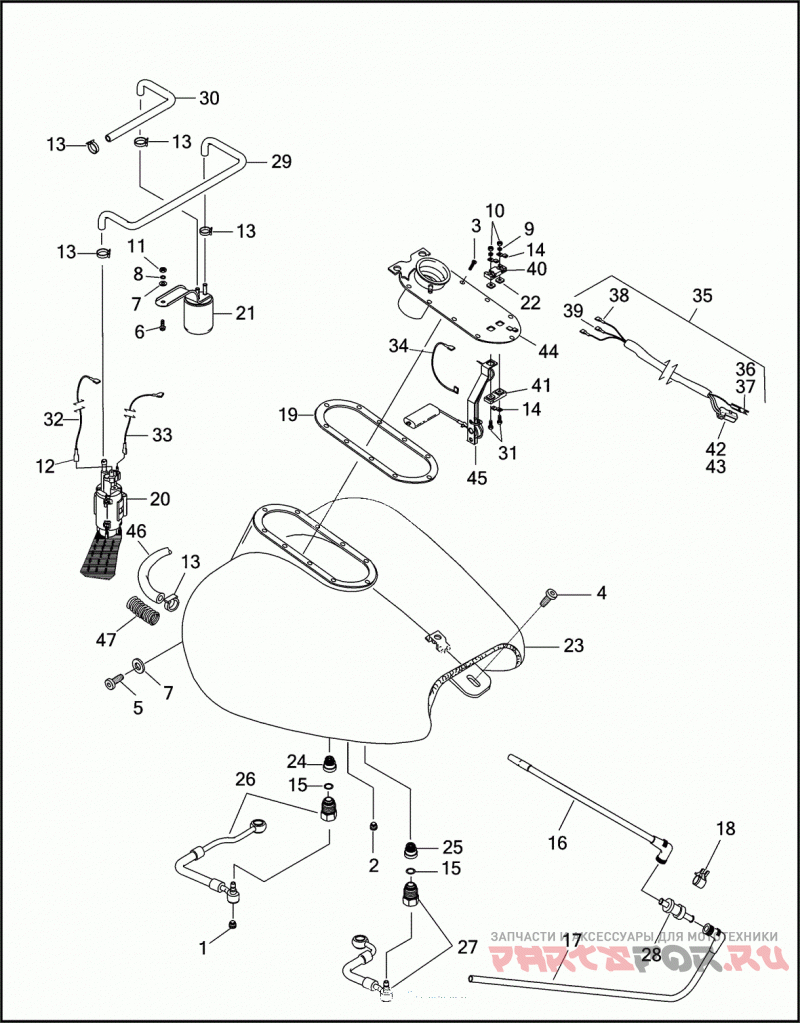

FUEL TANK & PUMP, FUEL INJECTED - FLHTCUI, FLHTCI & FLTRI

Harley Davidson FLHTCUI 1FCW ULTRA CLASSIC (1999)

Harley Davidson
#oem кодцена
1
757
Заглушка
2
758
Заглушка
3
1311D
SCREW NO. 8-32 X 1/2 PHILLIPS TRUSS HD., SELF-SEALING
4
3684
SCREW 5/16-18 X 1 TORX PAN HD.
5
3676
SCREW 5/16-18 X 5/8 TORX PAN HD.
6
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
7
6702
WASHER 5/16 X 11/16 X 1/16
8
7041
LOCKWASHER 5/16
9
7069
LOCKWASHER NO. 10
10
7634
NUT NO. 10-32 X 1/8 X 5/16 (BRASS)
11
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
12
9930
TERMINAL FEMALE SPADE, 3/16 INCH SLOT
13
10038A
Зажим
14
10138
TERMINAL MALE SPADE
15
11246
Уплотнительное кольцо
16
27201-97A
TUBE TANK TO VALVE
17
27291-97A
TUBE VALVE TO ATMOSPHERE
18
56076-97
CLIP VAPOR VALVE
19
61326-95
GASKET SENDING UNIT
20
61342-95A
Топливный Насос
21
61343-95
Топливный Фильтр
22
61346-95
SEAL INSULATOR
23
61356-98
FUEL TANK (PRIMED)
24
61407-95A
CHECK VALVE OUT (W/ O-RING)
25
61408-95A
CHECK VALVE IN (W/ O-RING)
26
61470-99A
FUEL LINE KIT HIGH PRESSURE SUPPLY (W/ FITTING)
27
61471-95A
FUEL LINE KIT LOW PRESSURE RETURN (W/ FITTING)
28
62150-85
VAPOR VALVE
29
62357-95
HOSE FUEL PUMP
30
62358-95
HOSE FUEL FILTER
31
67244-95
Винт
32
70313-95
WIRE ASSEMBLY FUEL PUMP (POSITIVE)
33
70317-95
WIRE ASSEMBLY FUEL PUMP (NEGATIVE)
34
70326-95
WIRE ASSEMBLY GROUND
35
70369-97
WIRING HARNESS FUEL TANK
36
72039-71A
PIN SINGLE SOCKET
37
72043-71A
CONNECTOR SINGLE PIN
38
72290-94
TERMINAL 1/4 INCH FEMALE
39
72294-94
TERMINAL FEMALE, #16-20 GAUGE
40
72504-95
TERMINAL BLOCK TOP
41
72505-95
TERMINAL BLOCK BOTTOM
42
73152-96BK
CONNECTOR 2-PLACE
43
73191-96
PIN SINGLE SOCKET
44
75069-95
CANOPY FUEL TANK
45
75071-95
SENDING UNIT FUEL GAUGE
46
63521-95A
HOSE 5/16 INCH I.D. X 5/8 INCH O.D. (RUBBER) (25 FEET)
47
62555-95
INSULATOR 5/8 INCH I.D. (NYLON) (8 FEET)
