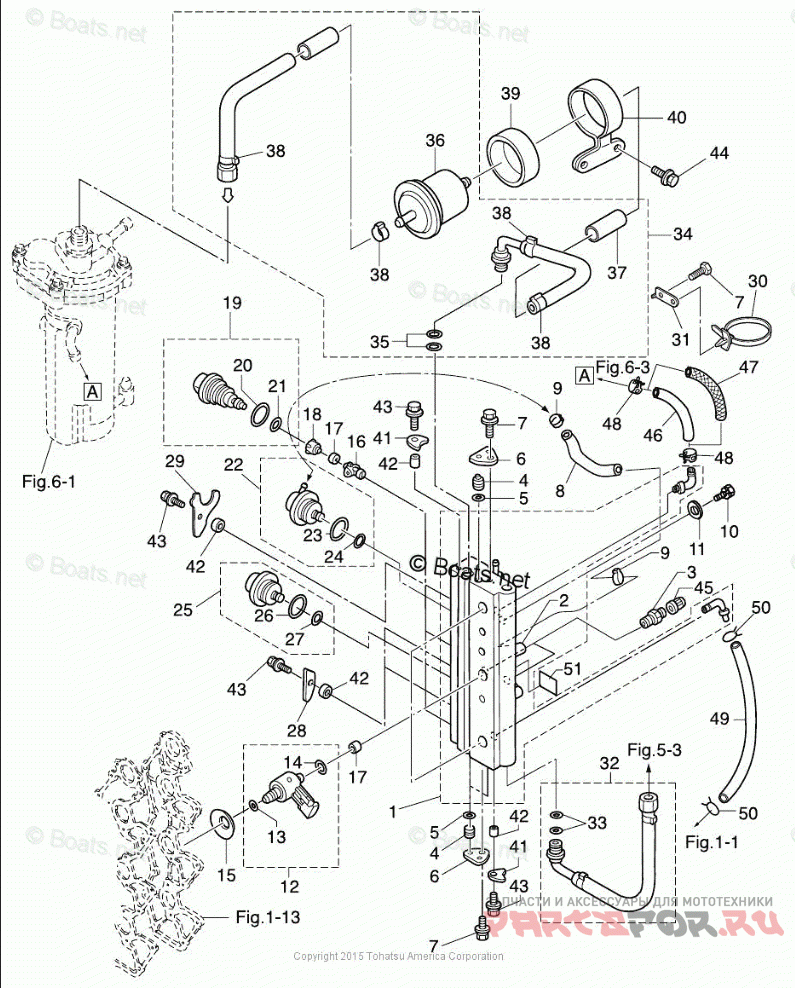

AIR RAIL

Tohatsu MD75C2

Tohatsu
#oem кодцена
4-50
338022150
CLIP, FUEL PIPE
4-36
3T5B101430
FUEL FILTER, HIGH PRESSURE
4-41
3T5101690
PLATE, NIPPLE
4-19
3T5103000
FUEL INJECTOR, FOR D40A/B/B2-/50A/B/B2-/70A-B/90A-B
4-28
3T5103020
PLATE, FUEL INJECTOR
4-21
3T5103030
O-RING 3.5-7.5
4-20
3T5103040
O-RING 2.8-20.2
4-16
3T5103140
INSERT, FUEL INJECTOR
4-18
3T5103150
ADAPTER FUEL INJECTOR
4-17
3T5103160
SEAL, COMPRESSION
4-13
3T5103170
O-RING 5-52
4-51
3T5721960
LABEL AIR RAIL
4-37
3Y7061570
PROTECTOR L=210
4-2
3T5101660
L-NIPPLE
4-29
3Y9103020
HOLDING PLATE, FUEL INJECTOR
4-14
3Y9103111
O-RING, 2.4-9.5, D40/50/70/90B/115A2
4-15
3Y9103120
SET PIECE AIR INJECTOR, D40/50/70/90B/115
4-7
9101E35612
BOLT WASHER (10 MULTIPLE)
4-44
9101E35616
BOLT WASHER (10 MULTIPLE)
4-43
9101E35616
BOLT WASHER (10 MULTIPLE)
4-10
9161030865
BOLT (10 MULTIPLE)
4-11
9401030800
WASHER (10 MULTIPLE)
4-49
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
4-46
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
4-4
3T5101670
PLUG
4-6
3T5101650
STOPPER PLUG
4-1
3FW100800
AIR RAIL ASSY
4-9
3T5100910
CLAMP
4-32
3FW100880
AIR HOSE ASSY
4-40
3FW101440
FUEL FILTER BAND
4-34
3FY100890
FUEL HOSE ASSY (W/FILTER) L=543
4-47
3FZ021651
HOSE, LOW PERMEATION
4-25
3GF100900
REGULATOR, AIR D40/50B2D75/90C2/115A2 (ORANGE)
4-12
3GF103100
AIR INJECTOR, D40/50B2/D75/90C2/115A2 (ORANGE)
4-48
3GT351430
CLIP, @ 9.4
4-31
3T1761740
STAY, LEAD WIRE BAND
4-30
3T1843980
LEAD WIRE BAND, 170 (LOCAL PURCHASE)
4-38
3T5100860
CLAMP, 21/32 (17.5mm)
4-27
3T5100940
O-RING
4-5
3T5101641
O-RING 6.8-1.9
4-24
3T5100940
O-RING
4-26
3T5100950
O-RING
4-23
3T5100950
O-RING
4-3
3T5100980
VALVE ASSY
4-45
3T5100990
CAP, VALVE
4-39
3T5101450
RUBBER, FUEL FILTER
4-22
3T5101480
FUEL REGULATOR
4-42
3T5101530
COLLAR
4-33
3T5101620
O-RING 9.8-1.9
4-35
3T5101620
O-RING 9.8-1.9
4-8
98AY45105
AIR HOSE
